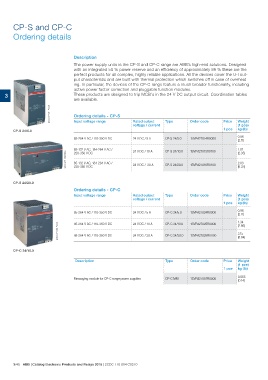

Page 244 - EPR Catalog 2015

CP-S and CP-C
Ordering details

3 Description

CP-S 24/5.0 The power supply units in the CP-S and CP-C range are ABB’s high-end solutions. Designed
CP-S 24/20.0 with an integrated 50 % power reserve and an efficiency of approximately 89 % these are the
perfect products for all complex, highly reliable applications. All the devices cover the U-I out-
CP-C 24/10.0 put characteristic and are built with thermal protection which switches off in case of overheat-
ing. In particular, the devices of the CP-C range feature a much broader functionality, including
active power factor correction and pluggable function modules.
These products are designed to trip MCB‘s in the 24 V DC output circuit. Coordination tables
are available.

2CDC 271 061 F0004 Ordering details - CP-S Rated output Type Order code Price Weight
1SVR427014R0000 1 pce (1 pce)
Input voltage range voltage / current 1SVR427015R0100 kg (lb)

85-264 V AC / 110-350 V DC 24 V DC / 5 A CP-S 24/5.0 0.96
(2.11)
85-132 V AC, 184-264 V AC /
2CDC 271 063 F0004 220-350 V DC 24 V DC / 10 A CP-S 24/10.0 1.07
(2.35)
85-132 V AC, 184-264 V AC /
220-350 V DC 24 V DC / 20 A CP-S 24/20.0 1SVR427016R0100 2.83
(6.23)

Ordering details - CP-C Rated output Type Order code Price Weight
1 pce (1 pce)
Input voltage range voltage / current 1SVR427024R0000 kg (lb)
1SVR427025R0000
85-264 V AC / 110-350 V DC 24 V DC / 5 A CP-C 24/5.0 1SVR427026R0000 0.96
85-264 V AC / 110-350 V DC 24 V DC / 10 A CP-C 24/10.0 (2.11)
85-264 V AC / 110-350 V DC 24 V DC / 20 A CP-C 24/20.0
2CDC 271 065 F0004 1.34
(2.95)

3.15
(6.94)

Description Type Order code Price Weight
Messaging module for CP-C range power supplies CP-C MM 1SVR427081R0000 1 pce (1 pce)
kg (lb)

0.065
(0.14)

3/45 ABB | Catalog Electronic Products and Relays 2015 | 2CDC 110 004 C0210
