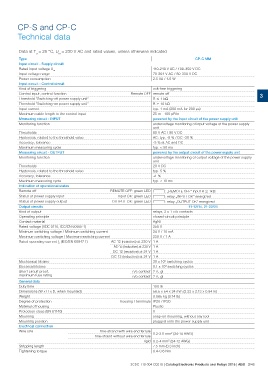

CP-S and CP-C
Technical data
Data at Ta = 25 °C, Uin = 230 V AC and rated values, unless otherwise indicated
Type CP-C MM 3
Input circuit - Supply circuit
Rated input voltage Uin 110-240 V AC / 100-350 V DC
Input voltage range 70-264 V AC / 80-350 V DC
Power consumption 2.5 VA / 1.5 W
Input circuit - Control circuit
Kind of triggering volt-free triggering
Control input, control function Remote OFF remote off
Threshold "Switching-off power supply unit"
Threshold "Switching-on power supply unit" R ͨ 1 k⏲
Input current R ͧ 10 k⏲
Maximum cable length to the control input typ. 1 mA (200 mA for 200 μs)
Measuring circuit - INPUT 25 m - 100 pF/m
powered by the input circuit of the power supply unit
Monitoring function undervoltage monitoring of input voltage of the power supply
unit
Thresholds 85 V AC / 90 V DC
Hysteresis, related to the threshold value AC: typ. -8 % / DC -30 %
Accuracy, tolerance -5 % at AC and DC
Maximum measuring cycle typ. < 50 ms
Measuring circuit - OUTPUT powered by the output circuit of the power supply unit
Monitoring function undervoltage monitoring of output voltage of the power supply
unit
Thresholds 20 V DC
Hysteresis, related to the threshold value typ. 5 %
Accuracy, tolerance ±1 %
Maximum measuring cycle typ. < 10 ms
Indication of operational states
Remote off REMOTE OFF: green LED V: „REMOTE OFF“ input R ͨ 1k⏲
Status of power supply input Input OK: green LED V: relay „INPUT OK“ energized
Status of power supply output OUTPUT OK: green LED V: relay „OUTPUT OK“ energized
Output circuits 11-12/14, 21-22/24
Kind of output relays, 2 x 1 c/o contacts
Operating principle closed-circuit principle
Contact material AgNi
Rated voltage (VDE 0110, IEC/EN 60947-1) 250 V
Minimum switching voltage / Minimum switching current 24 V / 10 mA
Maximum switching voltage / Maximum switching current 250 V / 1 A
Rated operating current Ie (IEC/EN 60947-1) AC-12 (resistive) at 230 V 1 A
AC-15 (inductive) at 230 V 1 A
DC-12 (resistive) at 24 V 1 A
DC-13 (inductive) at 24 V 1 A
Mechanical lifetime 30 x 106 switching cycles
Electrical lifetime 0.1 x 106 switching cycles
Short circuit proof, n/c contact 2 A, gL
maximum fuse rating n/o contact 2 A, gL
General data
Duty time 100 %
Dimensions (W x H x D, when mounted) 56.5 x 54 x 24 mm (2.22 x 2.13 x 0.94 in)
Weight 0.065 kg (0.14 lb)
Degree of protection housing / terminals IP20 / IP20
Material of housing Plastic
Protection class (EN 61140) II
Mounting snap-on mounting, without any tool
Mounting position plugged onto the power supply unit
Electrical connection
Wire size fine-strand with wire end ferrule
0.2-2.5 mm2 (24-14 AWG)
fine-strand without wire end ferrule
rigid 0.2-4 mm2 (24-12 AWG)
Stripping length 7.5 mm (0.3 inch)
Tightening torque 0.4-0.6 Nm
