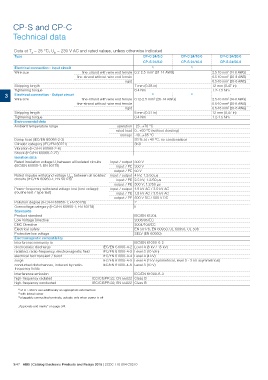

CP-S and CP-C
Technical data

Data at Ta = 25 °C, Uin = 230 V AC and rated values, unless otherwise indicated

Type CP-C 24/5.0 CP-C 24/10.0 CP-C 24/20.0

CP-S 24/5.0 CP-S 24/10.0 CP-S 24/20.0

Electrical connection - Input circuit 3) 3) -

Wire size fine-strand with wire end ferrule 0.2-2.5 mm2 (24-14 AWG) 2.5-10 mm2 (14-8 AWG)

fine-strand without wire end ferrule 0.5-10 mm2 (20-8 AWG)

rigid 0.5-16 mm2 (20-6 AWG)

Stripping length 7 mm (0.28 in) 12 mm (0.47 in)

Tightening torque 0.4 Nm 1.2-1.5 Nm

3 Electrical connection - Output circuit 3) 3) -
Wire size 2.5-10 mm2 (14-8 AWG)
fine-strand with wire end ferrule 0.12-2.5 mm2 (26-14 AWG)

fine-strand without wire end ferrule 0.5-10 mm2 (20-8 AWG)

rigid 0.5-16 mm2 (20-6 AWG)

Stripping length 8 mm (0.31 in) 12 mm (0,47 in)

Tightening torque 0.4 Nm 1.2-1.5 Nm

Environmental data

Ambient temperature range operation -25...+70 °C

rated load 0...+60 °C (without derating)

storage -40...+85 °C

Damp heat (IEC/EN 60068-2-3) 93 % at +40 °C, no condensation

Climatic category (IEC/EN 60721) 3K3

Vibration (IEC/EN 60068-2-6)

Shock (IEC/EN 60068-2-27)

Isolation data

Rated insulation voltage Ui between all isolated circuits input / output 300 V
(IEC/EN 60950-1; EN 50178) input / PE 300 V

output / PE 50 V

Rated impulse withstand voltage Uimp between all isolated input / output 4 kV; 1.2/50 μs
circuits (IEC/EN 60950-1; EN 50178)
input / PE 2.5 kV; 1.2/50 μs

output / PE 500 V; 1.2/50 μs

Power-frequency withstand voltage test (test voltage) input / output 1.5 kV AC / 3.0 kV AC
(routine test / type test) input / PE 1.5 kV AC / 3.0 kV AC

output / PE 500 V DC / 500 V DC

Pollution degree (IEC/EN 60950-1; EN 50178) 2

Overvoltage category (IEC/EN 60950-1; EN 50178) II

Standards

Product standard IEC/EN 61204

Low Voltage Directive 2006/95/EC

EMC Directive 2004/108/EC

Electrical safety EN 50178, EN 60950, UL 60950, UL 508

Protective low voltage SELV (EN 60950)

Electromagnetic compatibility

Interference immunity to IEC/EN 61000-6-2

electrostatic discharge IEC/EN 61000-4-2 Level 4 (8 kV / 15 kV)

radiated, radio-frequency, electromagnetic field IEC/EN 61000-4-3 Level 3 (10 V/m)

electrical fast transient / burst IEC/EN 61000-4-4 Level 4 (4 kV)

surge IEC/EN 61000-4-5 Level 4 (2 kV symmetrical, level 3 - 3 kV asymmetrical)

conducted disturbances, induced by radio- IEC/EN 61000-4-6 Level 3 (10 V)
frequency fields

Interference emission IEC/EN 61000-6-3
high-frequency radiated IEC/CISPR 22; EN 55022 Class B
high-frequency conducted IEC/CISPR 22; EN 55022 Class B

1) at U > 264 V use additionally an appropriate external fuse
2) with lateral screw
3) pluggable connecting terminals, actuate only when power is off

„Approvals and marks“ on page 3/4.
