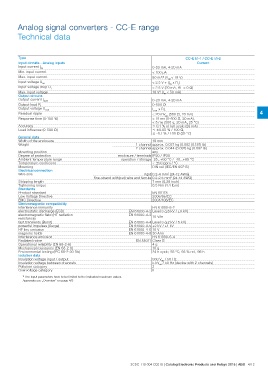

Page 291 - EPR Catalog 2015

Analog signal converters - CC-E range
Technical data

Type CC-E I/I-1 / CC-E I/I-2 4
Current
Input circuits - Analog inputs
Input current IIN 0-20 mA, 4-20 mA
Min. input current
< 100 μA
Max. input current
50 mA1) (VIN < 18 V)
Input voltage UIN < 2.5 V + (IIN x RL)
Input voltage drop Ui < 2.5 V (20 mA, RL = 0 ⏲)
Max. input voltage 18 V1) (IIN < 50 mA)
Output circuits
Output current IOUT 0-20 mA, 4-20 mA
Output load RL 0-500 ⏲
Output voltage UOUT IOUT x RL
Residual ripple < 20 mVpp (500 ⏲, 20 mA)
< 15 ms (0-500 ⏲, 20 mA),
Response time (0-100 %) < 5 ms (500 q, 20 mA, 25 °C)
ͨ 0.1 % of full-scale (20 mA)
Accuracy ͨ Ȁ0.05 % / 100 ⏲,
Load influence (0-500 ⏲) ͨ -0.1 % / 100 ⏲ (25 °C)

General data 18 mm
Width of the enclosure 1 channel approx. 0.037 kg (0.082 (0.181) lb)
Weight 2 channel approx. 0.044 (0.097) kg (0.097 lb)

Mounting position any
Degree of protection enclosure / terminals IP20 / IP20
Ambient temperature range
Temperature coefficient operation / storage -25...+60 °C / -40...+85 °C
Mounting < Ȁ50 ppm / °C
Electrical connection DIN rail (IEC/EN 60715)
Wire size
rigid 0.2-4 mm2 (24-12 AWG)
Stripping length fine-strand with(out) wire end ferrule 0.2-2.5 mm2 (24-14 AWG)
Tightening torque
Standards 7 mm (0,28 inch)
Product standard 0.5 Nm (4.4 lb.in)
Low Voltage Directive
EMC Directive EN 50178
Electromagnetic compatibility 2006/95/EC
Interference immunity 2004/108/EC
electrostatic discharge (ESD)
electromagnetic field (HF radiation EN 61000-6-2
resistance) EN 61000-4-2 Level 3 (±6 kV / ±8 kV)
fast transients (Burst) EN 61000-4-3 10 V/m
powerful impulses (Surge)
HF line emission EN 61000-4-4 Level 3 (±2 kV / 5 kH)
magnetic fields EN 61000-4-5 ±2 kV / ±1 kV
Interference emission EN 61000-4-6 10 V
Radiated noise EN 61000-4-8 30 A/m
Operational reliability (EN 68-2-6)
Mechanical resistance (EN 68-2-6) EN 61000-6-4
Environmental testing (IEC 68-2-30 Db) EN 55011 Class B
Isolation data
Insulation voltage input / output 4g
Insulation voltage between channels 10 g
Pollution category 24 h cycle, 55 °C, 93 % rel., 96 h
Overvoltage category
500 Veff / 50 Hz
5 kVeff / 50 Hz (device with 2 channels)
2
II

1) The input parameters have to be limited to the indicated maximum values.
Approvals see „Overview“ on page 4/3
