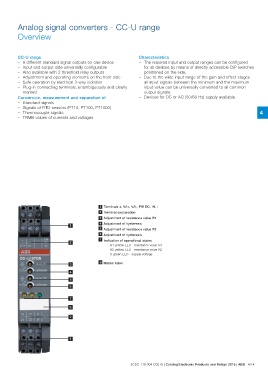

Analog signal converters - CC-U range
Overview

CC-U range Characteristics
– 8 different standard signal outputs on one device – The required input and output ranges can be configured
– Input and output side universally configurable
– Also available with 2 threshold relay outputs for all devices by means of directly accessible DIP switches
– Adjustment and operating elements on the front side positioned on the side.
– Safe operation by electrical 3-way isolation – Due to the wide input range of the gain and offset stages
– Plug-in connecting terminals, unambiguously and clearly all input signals between the minimum and the maximum
input value can be universally converted to all common
marked output signals.
– Devices for DC or AC (50/60 Hz) supply available.
Conversion, measurement and separation of
– Standard signals 4
– Signals of RTD sensors (PT10, PT100, PT1000)
– Thermocouple signals
– TRMS values of currents and voltages

1 Terminals +, V/I+, V/I-, PW DC, IN, -
2 Terminal explanation
3 Adjustment of resistance value R1

1 4 Adjustment of hysteresis

4 Adjustment of resistance value R2
Adjustment of hysteresis

2 7 Indication of operational states
R1 yellow LED - resistance value R1
R2 yellow LED - resistance value R2
U green LED - supply voltage

3 8 Marker label
4
5

7
8
2

1
