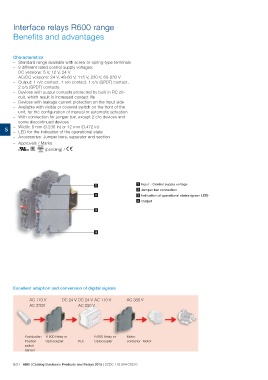

Interface relays R600 range
Benefits and advantages

Characteristics

– Standard range available with screw or spring-type terminals

– 8 different rated control supply voltages:

DC versions: 5 V, 12 V, 24 V

AC/DC versions: 24 V, 48-60 V, 115 V, 230 V, 60-230 V

– Output: 1 n/c contact, 1 n/o contact, 1 c/o (SPDT) contact,

2 c/o (SPDT) contacts

– Devices with output contacts protected by built in RC cir-

cuit, which result in increased contact life

– Devices with leakage current protection on the input side

– Available with visible or covered switch on the front of the

unit, for the configuration of manual or automatic actuation

– With connection for jumper bar, except 2 c/o devices and

some discontinued devices

5 – Width: 6 mm (0.236 in) or 12 mm (0.472 in)
– LED for the indication of the operational state

– Accessories: Jumper bars, separator end section

– Approvals / Marks

PH R (pending) / a

1 1 Input - Control supply voltage
2 Jumper bar connection

2 3 Indication of operational states (green LED)
4 Output

3

4

Excellent adaption and conversion of digital signals

AC 110 V DC 24 V DC 24 V AC 110 V AC 380 V
AC 230V AC 230 V

Pushbutton R 600 Relay or PLC R 600 Relay or Motor
Position Optocoupler Optocoupler contactor Motor
switch
Sensor
