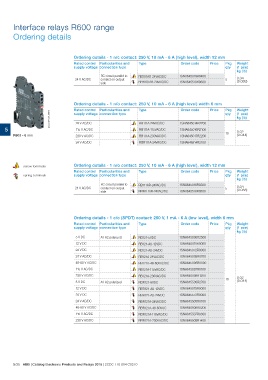

Page 342 - EPR Catalog 2015

Interface relays R600 range
Ordering details

Ordering details - 1 n/c contact: 250 V, 10 mA - 6 A (high level), width 12 mm

Rated control Particularities and Type Order code Price Pkg Weight
supply voltage connection type qty (1 pce)
kg (lb)
24 V AC/DC RC circuit parallel to RB101AR-24VAC/DC 1SNA645019R0400 5
contact on output RBR101AR-24VAC/DC 1SNA645519R0600 0.04
side (0.088)

Ordering details - 1 n/o contact: 250 V, 10 mA - 6 A (high level) width 6 mm

2CDC 291 024 S0013 Rated control Particularities and Type Order code Price Pkg Weight
supply voltage connection type qty (1 pce)
kg (lb)
5 24 V AC/DC RB111A-24VAC/DC 1SNA645014R2700 10
115 V AC/DC RB111A-115VAC/DC 1SNA645016R2100 0.02
R600 - 6 mm 230 V AC/DC RB111A-230VAC/DC 1SNA645017R2200 (0.044)
24 V AC/DC RBR111A-24VAC/DC 1SNA645514R2100

screw terminals Ordering details - 1 n/o contact: 250 V, 10 mA - 6 A (high level), width 12 mm
spring terminals
Rated control Particularities and Type Order code Price Pkg Weight
supply voltage connection type qty (1 pce)
kg (lb)
24 V AC/DC RC circuit parallel to RB111AR-24VAC/DC 1SNA645018R0300 5
contact on output RBR111AR-24VAC/DC 1SNA645518R0500 0.04
side (0.088)

Ordering details - 1 c/o (SPDT) contact: 250 V, 1 mA - 6 A (low level), width 6 mm

Rated control Particularities and Type Order code Price Pkg Weight
supply voltage connection type qty (1 pce)

kg (lb)

5 V DC A1-A2 polarized RB121-5VDC 1SNA645036R2500

12 V DC RB121-AU-12VDC 1SNA645075R0000

24 V DC RB121-AU-24VDC 1SNA645072R0000

24 V AC/DC RB121A-24VAC/DC 1SNA645005R0700

48-60 V AC/DC RB121A-48-60VAC/DC 1SNA645006R0000

115 V AC/DC RB121A-115VAC/DC 1SNA645007R0100

230 V AC/DC A1-A2 polarized RB121A-230VAC/DC 1SNA645008R1200 10 0.02
5 V DC RBR121-5VDC 1SNA645536R2700 (0.044)

12 V DC RBR121-AU-12VDC 1SNA645575R0000

24 V DC RBR121-AU-24VDC 1SNA645572R0000

24 V AC/DC RBR121A-24VAC/DC 1SNA645505R0100

48-60 V AC/DC RBR121A-48-60VUC 1SNA645506R0200

115 V AC/DC RBR121A-115VAC/DC 1SNA645507R0300

230 V AC/DC RBR121A-230VAC/DC 1SNA645508R1400

5/35 ABB | Catalog Electronic Products and Relays 2015 | 2CDC 110 004 C0210
