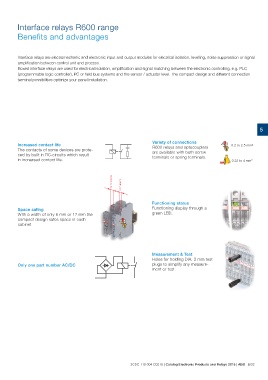

Interface relays R600 range
Benefits and advantages

Interface relays are electromechanic and electronic input and output modules for electrical isolation, levelling, noise suppression or signal
amplification between control unit and process.
Boxed interface relays are used for electrical isolation, amplification and signal matching between the electronic controlling, e.g. PLC
(programmable logic controller), PC or field bus systems and the sensor / actuator level. The compact design and different connection
terminal possibilities optimize your panel installation.

Increased contact life Variety of connections 5
The contacts of some devices are prote- R600 relays and optocouplers
ced by built in RC-circuits which result are available with both screw 0.2 to 2.5 mm²
in increased contact life. terminals or spring terminals. 0.22 to 4 mm²

Space safing 12 mm spacing
With a width of only 6 mm or 12 mm the 6 mm spacing
compact design safes space in each
cabinet. Functioning status
Functioning display through a
Only one part number AC/DC green LED.

Measurement & Test
Holes for holding DIA. 2 mm test
plugs to simplify any measure-
ment or test.
