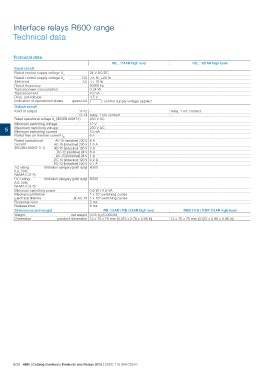

Interface relays R600 range
Technical data

Technical data

RB... 111AR high level RB... 101AR high level

Input circuit 24 V AC/DC relay, 1 n/c contact
-
Rated control supply voltage Us DC -15 %, +20 %
AC -/+ 10 % RBR 111A / RBR 111AR high level
Rated control supply voltage Us 12 x 75 x 75 mm (0.472 x 2.95 x 2.95 in)
tolerance 50/60 Hz
Rated frequency 0.24 W
Typical power consumption 10 mA
Typical current 4.5 V
Drop-out voltage green LED V: control supply voltage applied
Indication of operational states

Output circuit

Kind of output 11-12 -

13-14 relay, 1 n/o contact

Rated operational voltage Ue (IEC/EN 60947-1) 250 V AC

Minimum switching voltage 12 V

5 Maximum switching voltage 250 V AC
Minimum switching current 10 mA

Rated free air thermal current Ith 6A

Rated operational AC-12 (resistive) 230 V 6 A

current AC-15 (inductive) 230 V 1.5 A

(IEC/EN 60947-5-1) AC-15 (inductive) 120 V 3 A

DC-12 (resistive) 24 V 6 A

DC-13 (inductive) 24 V 1 A

DC-13 (inductive) 120 V 0.2 A

DC-13 (inductive) 230 V 0.1 A

AC rating Utilization category (pilot duty) B300

(UL 508;

NEMA ICS-5)

DC rating Utilization category (pilot duty) R300
(UL 508;
NEMA ICS-5)

Minimum switching power 0.6 W / 0.6 VA
Mechanical lifetime 1 x 107 switching cycles
Electrical lifetime at AC-15 1 x 105 switching cycles
Response time 5 ms
Release time 8 ms

Dimensions and weight RB 111AR / RB 101AR high level

Weight net weight 0.03 kg (0.066 lb)
Dimension product dimension 12 x 70 x 75 mm (0.472 x 2.76 x 2.95 in)

5/39 ABB | Catalog Electronic Products and Relays 2015 | 2CDC 110 004 C0210
