P. 351

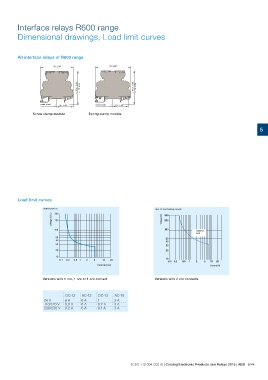

Interface relays R600 range
Dimensional drawings, Load limit curves
All interface relays of R600 range
center of rail center of rail
Screw clamp module Spring clamp module
5
Load limit curves Max. DC load breaking capacity
Limited load in CC resistive
load
Voltage (Vcc)
Voltage [V]
Current (Acc) Current [A]
Versions with 1 n/o, 1 n/c or 1 c/o contact Versions with 2 c/o contacts
24 V DC-12 AC-12 DC-13 AC-15
110/120 V
220/230 V 6A 6A 1 3A
0,3 A 6A 0.2 A 3A
0.2 A 6A 0.1 A 3A
2CDC 110 004 C0210 | Catalog Electronic Products and Relays 2015 | ABB 5/44
