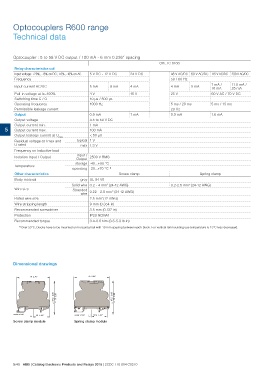

Page 356 - EPR Catalog 2015

Optocouplers R600 range
Technical data

Optocoupler : 5 to 58 V DC output / 100 mA - 6 mm 0.236“ spacing

OB...IC 0100

Relay characteristics coil 5 V DC - 12 V DC 24 V DC 48 V AC/DC 60 V AC/DC 115 V AC/DC 230 V AC/DC
Input voltage: +20%, -15% on DC ; 10%, -10% on AC
Frequency 50 / 60 Hz

Input current AC/DC 5 mA 9 mA 4 mA 4 mA 5 mA 7 mA / 11.5 mA /
16 mA 25 mA

Pull-in voltage at Is=100% 4V 15 V 25 V 60 V AC / 70 V DC
Switching time C / O 10 μs / 500 μs
Operating frequency 1000 Hz 5 ms / 20 ms 5 ms / 15 ms
Permissible leakage current 20 Hz 1.6 mA
Output 0.9 mA 1 mA 0.9 mA
Output voltage 4.5 to 58 V DC
Output current min. 1 mA
100 mA
5 Output current max. < 50 μA
typical 1 V
Output leakage current at Umax. max 1.3 V
Residual voltage at I max and
U rated input / 2500 V RMS
Frequency on inductive load Output
Isolation Input / Output
storage -40...+80 °C
Temperature
operating -20...+70 °C 1)
Other characteristics
Body material Screw clamp Spring clamp
0.2-2.5 mm² (24-12 AWG)
Wire size grey UL 94 V0

Rated wire size Solid wire 0.2 - 4 mm² (24-12 AWG)
Wire stripping length
Recommended screwdriver Stranded 0.22 - 2.5 mm² (24-12 AWG)
Protection wire
Recommended torque
2.5 mm² (12 AWG)

9 mm (0.354 in)

3.5 mm (0.137 in)

IP20 NEMA1

0.4-0.6 Nm (3.5-5.3 lb.in)

1) Over 55°C, blocks have to be mounted on horizontal rail with 10 mm spacing between each block. For vertical rail mounting use temperature is 15°C less decreased.

Dimensional drawings

center of rail center of rail

Screw clamp module Spring clamp module
