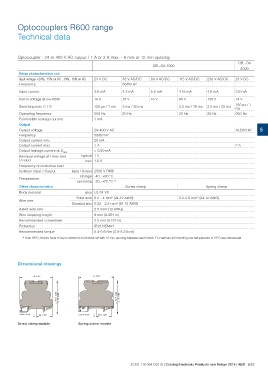

Page 359 - EPR Catalog 2015

Optocouplers R600 range
Technical data

Optocoupler : 24 to 400 V AC output / 1 A or 2 A max. - 6 mm or 12 mm spacing

OB...OA 1000 OB...OA
2000
Relay characteristics coil 24 V DC 48 V AC/DC 60 V AC/DC 115 V AC/DC 230 V AC/DC
Input voltage: +20%, -15% on DC ; 10%, -10% on AC 50/60 Hz 24 V DC
Frequency

Input current 3.6 mA 4.3 mA 5.5 mA 4.15 mA 4.6 mA 3.6 mA

Pull-in voltage at Is=100% 14 V 15 V 18 V 60 V 135 V 14 V
3 ms / 30 ms 2.2 ms / 18 ms 2.5 ms / 25 ms
Switching time C / O 150 μs / 1 ms 20 Hz 25 Hz 20 Hz 150 μs / 1
Operating frequency 500 Hz ms
Permissible leakage current 1 mA
500 Hz

Output 24-400 V AC 10-230 V AC 5
Output voltage 50/60 Hz 2A
Frequency 25 mA
Output current min. 1A Spring clamp
Output current max. < 0.50 mA 0.2-2.5 mm² (24-12 AWG)
Output leakage current at Umax. typical 1 V
Residual voltage at I max and max 1.6 V
U rated
Frequency on inductive load input / Output 2500 V RMS
Isolation Input / Output storage -40...+80 °C

Temperature operating -20...+70 °C 1)
Screw clamp
Other characteristics
Body material grey UL 94 V0
Solid wire 0.2 - 4 mm² (24-12 AWG)
Wire size Stranded wire 0.22 - 2.5 mm² (24-12 AWG)

Rated wire size 2.5 mm² (12 AWG)

Wire stripping length 9 mm (0.354 in)

Recommended screwdriver 3.5 mm (0.137 in)
Protection IP20 NEMA1
Recommended torque 0.4-0.6 Nm (3.5-5.3 lb.in)

1) Over 55°C, blocks have to be mounted on horizontal rail with 10 mm spacing between each block. For vertical rail mounting use temperature is 15°C less decreased.

Dimensional drawings

center of rail center of rail

Screw clamp module Spring clamp module
