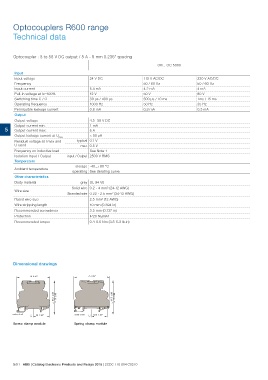

P. 358
Optocouplers R600 range
Technical data
Optocoupler : 5 to 58 V DC output / 5 A - 6 mm 0.236“ spacing
Input OB... OC 5000
Input voltage 24 V DC 115 V AC/DC 230 V AC/DC
50 / 60 Hz 50 / 60 Hz
Frequency 5.4 mA 4.2 mA 4 mA
Input current 12 V 50 V 80 V
Pull-in voltage at Is=100% 30 μs / 400 μs 500 μs / 10 ms 1ms / 15 ms
Switching time C / O 50 Hz 35 Hz
0.3 mA 0.3 mA
Operating frequency 1000 Hz
Permissible leakage current 0.8 mA
Output
Output voltage 4.5- 58 V DC
Output current min. 1 mA
5A
5 Output current max.
Output leakage current at Umax. < 50 μA
Residual voltage at I max and typical 0.1 V
U rated
max 0.5 V
Frequency on inductive load See Note 1
Isolation Input / Output
Temperature input / Output 2500 V RMS
Ambient temperature storage -40...+80 °C
operating See derating curve
Other characteristics
Body material grey UL 94 V0
Wire size Solid wire 0.2 - 4 mm² (24-12 AWG)
Stranded wire 0.22 - 2.5 mm² (24-12 AWG)
Rated wire size 2.5 mm² (12 AWG)
Wire stripping length 10 mm (0.394 in)
Recommended screwdriver 3.5 mm (0.137 in)
Protection IP20 NEMA1
Recommended torque 0.4-0.6 Nm (3.5-5.3 lb.in)
Dimensional drawings
center of rail center of rail
Screw clamp module Spring clamp module
5/51 ABB | Catalog Electronic Products and Relays 2015 | 2CDC 110 004 C0210
