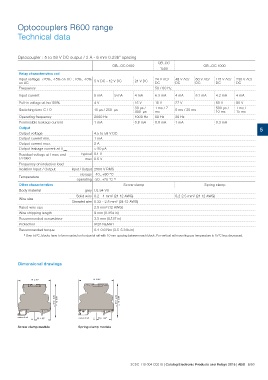

Optocouplers R600 range
Technical data

Optocoupler : 5 to 58 V DC output / 2 A - 6 mm 0.236“ spacing

                                                      OB...OC 0100                OB..OC                  OB...OC 1000
                                                                                   1500

Relay characteristics coil

Input voltage: +20%, -15% on DC ; 10%, -10%  5 V DC - 12 V DC            24 V DC  24 V AC/ 48 V AC/  60 V AC/        115 V AC/ 230 V AC/
on AC                                                                             DC DC              DC              DC DC

Frequency                                                                         50 / 60 Hz

Input current                                5 mA           9 mA         4 mA     6.3 mA    4 mA     5.1 mA          4.2 mA    4 mA

Pull-in voltage at Is=100%                   4V                          15 V     15 V      27 V                     50 V      80 V

Switching time C / O                         15 μs / 250 μs              30 μs /  1 ms / 7  5 ms / 20 ms             500 μs /  1 ms /
                                                                         400 μs   ms                                 10 ms     15 ms

Operating frequency                          2000 Hz                     1000 Hz 60 Hz      20 Hz

Permissible leakage current                  1 mA                        0.8 mA   0.9 mA    1 mA                     0.3 mA

Output                                                                                                                                                                5

Output voltage                               4.5 to 58 V DC

Output current min.                          1 mA

Output current max.                          2A

Output leakage current at Umax.             < 50 μA
                                 typical 0.1 V
Residual voltage at I max and
U rated                             max 0.5 V

Frequency on inductive load

Isolation Input / Output         input / Output 2500 V RMS

Temperature                        storage -40...+80 °C
                                 operating -20...+70 °C 1)

Other characteristics                                             Screw clamp                             Spring clamp

Body material                    grey UL 94 V0

Wire size                            Solid wire 0.2 - 4 mm² (24-12 AWG)                     0.2-2.5 mm² (24-12 AWG)
                                 Stranded wire 0.22 - 2.5 mm² (24-12 AWG)

Rated wire size                              2.5 mm² (12 AWG)

Wire stripping length                        9 mm (0.354 in)

Recommended screwdriver                      3.5 mm (0.137 in)

Protection                                   IP20 NEMA1

Recommended torque                           0.4-0.6 Nm (3.5-5.3 lb.in)

1) Over 55°C, blocks have to be mounted on horizontal rail with 10 mm spacing between each block. For vertical rail mounting use temperature is 15°C less decreased.

Dimensional drawings

center of rail                   center of rail

Screw clamp module               Spring clamp module

                                                                  2CDC 110 004 C0210 | Catalog Electronic Products and Relays 2015 | ABB 5/50
