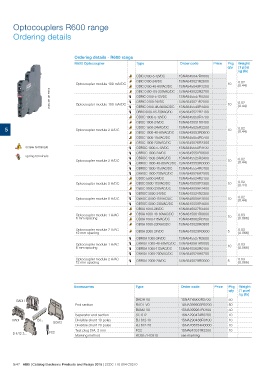

Page 354 - EPR Catalog 2015

Optocouplers R600 range
Ordering details

Ordering details - R600 range

R600 Optocoupler Type Order code Price Pkg Weight
qty (1 pce)

kg (lb)

OBIC 0100-5-12VDC 1SNA645047R0000

Optocoupler module 100 mA/DC OBIC 0100-24VDC 1SNA645021R2600 10 0.02
Optocoupler module 100 mA/DC (0.44)
OBIC 0100-48-60VAC/DC 1SNA645049R1200
2CDC 291 001 F0013 Optocoupler module 2 A/DC
OBIC 0100-115-230VAC/DC 1SNA645022R2700
Optocoupler module 2 A/DC
OBRIC 0100-5-12VDC 1SNA645547R0200
Optocoupler module 5 A/DC
Optocoupler module 5 A/DC OBRIC 0100-24VDC 1SNA645521R2000 10 0.02
Optocoupler module 1 A/AC (0.44)
6 mm spacing OBRIC 0100-48-60VAC/DC 1SNA645549R1400
Optocoupler module 2 A/AC
12 mm spacing OBRIC 0100-115-230VAC/DC 1SNA645522R2100
Optocoupler module 1 A/AC
6 mm spacing OBOC 1000-5-12VDC 1SNA645050R1700
Optocoupler module 2 A/AC
12 mm spacing OBOC 1000-24VDC 1SNA645051R0400

5 OBOC 1500-24VAC/DC 1SNA645025R2200 10 0.02
(0.44)
screw terminals OBOC 1000-48-60VAC/DC 1SNA645053R0600
spring terminals
OBOC 1000-115VAC/DC 1SNA645054R0700

OBOC 1000-230VAC/DC 1SNA645026R2300

OBROC 1000-5-12VDC 1SNA645550R1100

OBROC 1000-24VDC 1SNA645551R0600

OBROC 1500-24VAC/DC 1SNA645525R2400 10 0.02
(0.44)
OBROC 1000-48-60VAC/DC 1SNA645553R0000

OBROC 1000-115VAC/DC 1SNA645554R0100

OBROC 1000-230VAC/DC 1SNA645526R2500

OBOC 5000-24VDC 1SNA645024R2100

OBOC 5000-115VAC/DC 1SNA645058R1300 10 0.02
(0.44)

OBOC 5000-230VAC/DC 1SNA645059R1400

OBROC 5000-24VDC 1SNA645524R2300

OBROC 5000-115VAC/DC 1SNA645558R1500 10 0.02
(0.44)

OBROC 5000-230VAC/DC 1SNA645559R1600

OBOA 1000-24VDC 1SNA645027R2400

OBOA 1000-48-60VAC/DC 1SNA645061R0600 10 0.03
(0.066)
OBOA 1000-115VAC/DC 1SNA645062R0700

OBOA 1000-230VAC/DC 1SNA645028R0500

OBOA 2000-24VDC 1SNA645029R0600 5 0.03
(0.066)

OBROA 1000-24VDC 1SNA645527R2600

OBROA 1000-48-60VAC/DC 1SNA645561R0000 10 0.03
(0.066)
OBROA 1000-115VAC/DC 1SNA645562R0100

OBROA 1000-230VAC/DC 1SNA645528R0700

OBROA 2000-24VDC 1SNA645529R0000 5 0.03
(0.066)

Accessories Type Order code Price Pkg Weight
qty (1 pce)
BADH BADH V0 1SNA116900R2700
BADL V0 1SNA399903R0200 kg (lb)
BADL BJ... SC612 End section BAM2 V0 1SNA399967R0100
D 4/12-3... FC2 SC 612 1SNA290474R0200 50
Seperator end section BJ 612-10 1SNA290488R0100 50
Divisible shunt 10 poles BJ 612-20 1SNA206754R0000 50
Divisible shunt 20 poles FC2 1SNA645531R2200 10
Test plug DIA. 2 mm RC65 / RC610 see marking 10
Marking method 10
10

5/47 ABB | Catalog Electronic Products and Relays 2015 | 2CDC 110 004 C0210
