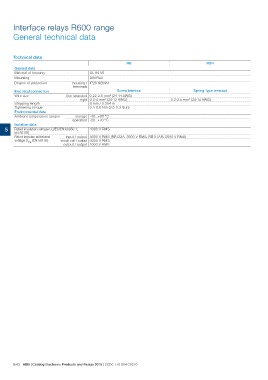

Page 350 - EPR Catalog 2015

Interface relays R600 range
General technical data

Technical data

RB RBR

General data UL 94 V0
Material of housing

Mounting DIN Rail

Degree of protection housing / IP20 NEMA1
terminals

Electrical connection Screw terminal Spring-type terminal

Wire size fine-stranded 0.22-2.5 mm² (24-14 AWG) 0.2-2.5 mm² (24-14 AWG)
rigid 0.2-4 mm² (24-12 AWG)
Stripping length 9 mm / 0.354 in
Tightening torque 0.4-0.6 Nm (3.5-5.3 lb.in)

Environmental data

Ambient temperature ranges storage -40...+80 °C
operation -20...+70 °C

Isolation data

5 Rated insulation voltage Ui (IEC/EN 60950-1, 4000 V RMS
EN 50178)

Rated impulse withstand input / output 4000 V RMS (RB122A: 3800 V RMS, RB111AR: 3500 V RMS)
voltage Uimp (EN 50178) shock coil / output 4000 V RMS

output / output 1000 V RMS

5/43 ABB | Catalog Electronic Products and Relays 2015 | 2CDC 110 004 C0210
