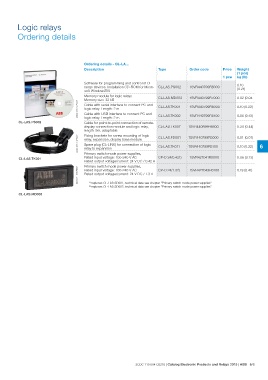

Logic relays
Ordering details

Ordering details - CL-LA... Type Order code Price Weight
Description 1 pce (1 pce)
kg (lb)

Software for programming and control of CL 1SVR440799R8000 0.10
range devices. Installation CD-ROM for Micro- CL-LAS.PS002 (0.21)
soft WindowsTM.

2CDC 311 012 F0007 Memory module for logic relays CL-LAS.MD003 1SVR440799R7000 0.02 (0.04
Memory size: 32 kB

Cable with serial interface to connect PC and CL-LAS.TK001 1SVR440799R6000 0.10 (0.22)
logic relay. Length: 2 m

Cable with USB interface to connect PC and CL-LAS.TK002 1SVR440799R6100 0.06 (0.13)
logic relay. Length: 2 m

CL-LAS.PS002 Cable for point-to-point connection of remote-
CL-LAS.TK001
CL-LAS.MD003 display connection module and logic relay, CL-LAD.TK007 1SVR440899R6600 0.20 (0.44)

length: 5m, adaptable

2CDC 311 014 F0007 Fixing brackets for screw mounting of logic CL-LAS.FD001 1SVR440799R5000 0.01 (0.01)
relay, expansion, display base module 1SVR440799R5100 0.10 (0.22)

Spare plug (CL-LINK) for connection of logic CL-LAS.TK011 6
relay to expansion

Primary switch mode power supplies,

Rated input voltage: 100-240 V AC CP-D 24/0.421) 1SVR427041R0000 0.06 (0.13)

Rated output voltage/current: 24 V DC / 0.42 A

2CDC 311 013 F0007 Primary switch mode power supplies, CP-D 24/1.32) 1SVR427043R0100 0.19 (0.41)
Rated input voltage: 100-240 V AC
Rated output voltage/current: 24 V DC / 1.3 A

1) replaces CL-LAS.SD001, technical data see chapter “Primary switch mode power supplies”
2) replaces CL-LAS.SD002, technical data see chapter “Primary switch mode power supplies”

2CDC 110 004 C0210 | Catalog Electronic Products and Relays 2015 | ABB 6/8
