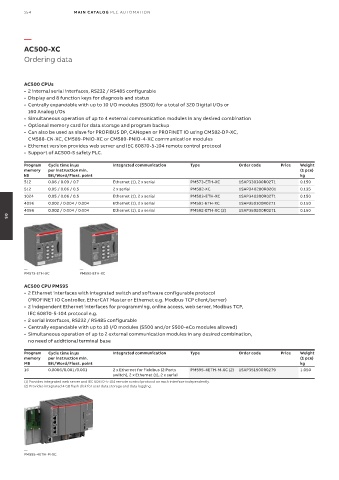

154 MAIN CATALOG PLC AUTOMATION

—
AC500-XC
Ordering data

AC500 CPUs
• 2 internal serial interfaces, RS232 / RS485 configurable
• Display and 8 function keys for diagnosis and status
• Centrally expandable with up to 10 I/O modules (S500) for a total of 320 Digital I/Os or
160 Analog I/Os
• Simultaneous operation of up to 4 external communication modules in any desired combination
• Optional memory card for data storage and program backup
• Can also be used as slave for PROFIBUS DP, CANopen or PROFINET IO using CM582-DP-XC,
CM588-CN-XC, CM589-PNIO-XC or CM589-PNIO-4-XC communication modules
• Ethernet version provides web server and IEC 60870-5-104 remote control protocol
• Support of AC500-S safety PLC.

Program Cycle time in µs Integrated communication Type Order code Price Weight
memory per instruction min. (1 pce)
kB Bit/Word/Float. point kg
512 0.06 / 0.09 / 0.7 Ethernet (1), 2 x serial PM573-ETH-XC 1SAP330300R0271 0.150
512 0.05 / 0.06 / 0.5 2 x serial PM582-XC 1SAP340200R0201 0.135
1024 0.05 / 0.06 / 0.5 Ethernet (1), 2 x serial PM583-ETH-XC 1SAP340300R0271 0.150
4096 0.002 / 0.004 / 0.004 Ethernet (1), 2 x serial PM591-ETH-XC 1SAP350100R0271 0.150
4096 0.002 / 0.004 / 0.004 Ethernet (1), 2 x serial PM592-ETH-XC (2) 1SAP350200R0271 0.150
05

— —
PM573-ETH-XC PM592-ETH-XC
AC500 CPU PM595
• 2 Ethernet interfaces with integrated switch and software configurable protocol
(PROFINET IO Controller, EtherCAT Master or Ethernet e.g. Modbus TCP client/server)
• 2 independent Ethernet interfaces for programming, online access, web server, Modbus TCP,
IEC 60870-5-104 protocol e.g.
• 2 serial interfaces, RS232 / RS485 configurable
• Centrally expandable with up to 10 I/O modules (S500 and/or S500-eCo modules allowed)
• Simultaneous operation of up to 2 external communication modules in any desired combination,
no need of additional terminal base

Program Cycle time in µs Integrated communication Type Order code Price Weight
memory per instruction min. (1 pce)
MB Bit/Word/Float. point kg
16 0.0006/0.001/0.001 2 x Ethernet for fieldbus (2 Ports PM595-4ETH-M-XC (2) 1SAP351500R0279 1.050
switch), 2 x Ethernet (1), 2 x serial
(1) Provides integrated web server and IEC 60870-5-104 remote control protocol on each interface independently.
(2) Provides integrated 4 GB flash disk for user data storage and data logging.

—
PM595-4ETH-M-XC
