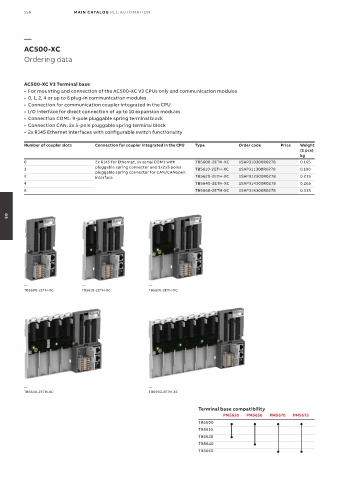

158 MAIN CATALOG PLC AUTOMATION

—
AC500-XC
Ordering data

AC500-XC V3 Terminal base
• For mounting and connection of the AC500-XC V3 CPUs only and communication modules
• 0, 1, 2, 4 or up to 6 plug-in communication modules
• Connection for communication coupler integrated in the CPU
• I/O interface for direct connection of up to 10 expansion modules
• Connection COM1: 9-pole pluggable spring terminal block
• Connection CAN: 2x 5-pole pluggable spring terminal block
• 2x RJ45 Ethernet interfaces with configurable switch functionality

Number of coupler slots Connection for coupler integrated in the CPU Type Order code Price Weight
(1 pce)
kg
0 2x RJ45 for Ethernet, 1x serial COM1 with TB5600-2ETH-XC 1SAP310300R0278 0.165
1 pluggable spring connector and 1x2x5 poles TB5610-2ETH-XC 1SAP311300R0278 0.190
pluggable spring connector for CAN/CANopen
2 interface TB5620-2ETH-XC 1SAP312300R0278 0.215
4 TB5640-2ETH-XC 1SAP314300R0278 0.265
6 TB5660-2ETH-XC 1SAP316300R0278 0.315

05

— — —
TB5600-2ETH-XC TB5610-2ETH-XC TB5620-2ETH-XC

— —
TB5640-2ETH-XC TB5660-2ETH-XC

Terminal base compatibility
PM5630 PM5650 PM5670 PM5675
TB5600
TB5610
TB5620
TB5640
TB5660
