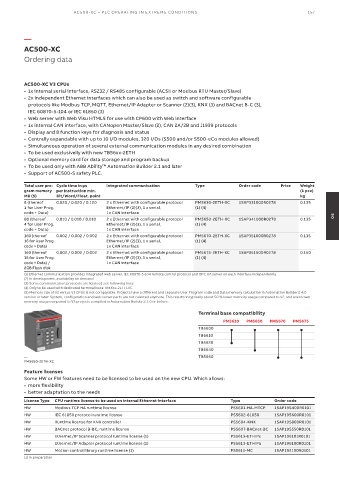

AC500 -XC – PLC OPER ATING IN EXTREME CONDITIONS 157

—
AC500-XC
Ordering data

AC500-XC V3 CPUs
• 1x internal serial interface, RS232 / RS485 configurable (ACSII or Modbus RTU Master/Slave)
• 2x independent Ethernet interfaces which can also be used as switch and software configurable
protocols like Modbus TCP, MQTT, Ethernet/IP Adapter or Scanner (2)(3), KNX (3) and BACnet B-C (3),
IEC 60870-5-104 or IEC 61850 (3)
• Web server with Web Visu HTML5 for use with CP600 with Web interface
• 1x internal CAN interface, with CANopen Master/Slave (2), CAN 2A/2B and J1939 protocols
• Display and 8 function keys for diagnosis and status
• Centrally expandable with up to 10 I/O modules, 320 I/Os (S500 and/or S500-eCo modules allowed)
• Simultaneous operation of several external communication modules in any desired combination
• To be used exclusivelly with new TB56xx-2ETH
• Optional memory card for data storage and program backup
• To be used only with ABB Ability Automation Builder 2.1 and later
TM
• Support of AC500-S safety PLC.
Total user pro- Cycle time in µs Integrated communication Type Order code Price Weight
gram memory per instruction min. (1 pce)
MB (5) Bit/Word/Float. point kg
8 (thereof 0.020 / 0.020 / 0.120 2 x Ethernet with configurable protocol PM5630-2ETH-XC 1SAP331000R0278 0.135
1 for User Prog. Ethernet/IP (2)(3), 1 x serial, (1) (4)
code + Data) 1x CAN interface
80 (thereof 0.010 / 0.010 / 0.010 2 x Ethernet with configurable protocol PM5650-2ETH-XC 1SAP341000R0278 0.135 05
4 for User Prog. Ethernet/IP (2)(3), 1 x serial, (1) (4)
code + Data) 1x CAN interface
160 (thereof 0.002 / 0.002 / 0.002 2 x Ethernet with configurable protocol PM5670-2ETH-XC 1SAP351000R0278 0.135
16 for User Prog. Ethernet/IP (2)(3), 1 x serial, (1) (4)
code + Data) 1x CAN interface
160 (thereof 0.002 / 0.002 / 0.002 2 x Ethernet with configurable protocol PM5675-2ETH-XC 1SAP351500R0278 0.150
16 for User Prog. Ethernet/IP (2)(3), 1 x serial, (1) (4)
code + Data) / 1x CAN interface
8GB Flash disk
(1) Ethernet communication provides integrated web server, IEC 60870-5-104 remote control protocol and OPC UA server on each interface independently.
(2) In development, availability on demand
(3) Some communication protocols are licensed see following lines
(4) Only to be used with dedicated terminal base TB56xx-2ETH-XC
(5) Memory size of V2 versus V3 CPUs is not comparable. Projects have a different and separate User Program code and Data memory calculation in Automation Builder 2.4.0
version or later: System, configuration and web server parts are not counted anymore. This results in typically about 50 % lower memory usage compared to V2, and even lower
memory usage compared to V3 projects compiled in Automation Builder 2.3.0 or before.
Terminal base compatibility
PM5630 PM5650 PM5670 PM5675
TB5600
TB5610
TB5620
TB5640
— TB5660
PM5650-2ETH-XC
Feature licenses
Some HW or FW features need to be licensed to be used on the new CPU. Which allows:
• more flexibility
• better adaptation to the needs
License Type CPU runtime license to be used on internal Ethernet interface Type Order code
HW Modbus TCP HA runtime license PS5601-HA-MTCP 1SAP195400R0101
HW IEC 61850 protocol runtime license PS5602-61850 1SAP195600R0101
HW Runtime license for KNX controller PS5604-KNX 1SAP195800R0101
HW BACnet protocol B-BC; runtime license PS5607-BACnet-BC 1SAP195550R0101
HW Ethernet/IP Scanner protocol runtime license (1) PS5613-ETHIPs 1SAP196101R0101
HW Ethernet/IP Adapter protocol runtime license (1) PS5613-ETHIPa 1SAP196100R0101
HW Motion control library runtime license (1) PS5611-MC 1SAP192150R0101
(1) In preparation
