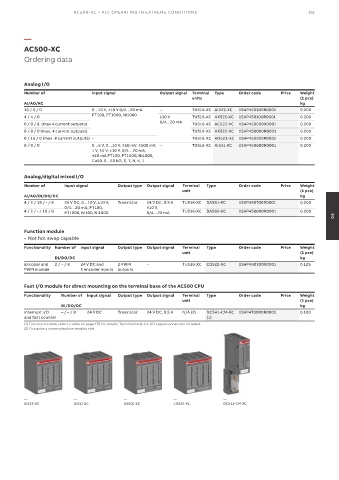

AC500 -XC – PLC OPER ATING IN EXTREME CONDITIONS 161

—
AC500-XC
Ordering data

Analog I/O
Number of Input signal Output signal Terminal Type Order code Price Weight
units (1 pce)
AI/AO/AC kg
16 / 0 / 0 0…10 V, ±10 V 0/4…20 mA – TU516-XC AI523-XC 1SAP450300R0001 0.200
PT100, PT1000, Ni1000
4 / 4 / 0 ±10 V TU516-XC AX521-XC 1SAP450100R0001 0.200
0 / 0 / 8 (max 4 current outputs) 0/4...20 mA TU516-XC AC522-XC 1SAP450500R0001 0.200
8 / 8 / 0 (max. 4 current outputs) TU516-XC AX522-XC 1SAP450000R0001 0.200
0 / 16 / 0 (max. 8 current outputs) – TU516-XC AO523-XC 1SAP450200R0001 0.200
8 / 0 / 0 0…5 V, 0…10 V, ±50 mV, ±500 mV, – TU516-XC AI531-XC 1SAP450600R0001 0.200
1 V, ±5 V, ±10 V, 0/4…20 mA,
±20 mA PT100, PT1000, Ni1000,
Cu50, 0…50 kΩ, S, T, N, K, J

Analog/digital mixed I/O
Number of Input signal Output type Output signal Terminal Type Order code Price Weight
unit (1 pce)
AI/AO/DI/DO/DC kg
4 / 2 / 16 / - / 8 24 V DC, 0…10 V, ±10 V, Transistor 24 V DC, 0.5 A TU516-XC DA501-XC 1SAP450700R0001 0.200
0/4…20 mA, PT100, ±10 V,
4 / 2 / - / 16 / 8 PT1000, Ni100, Ni1000 0/4…20 mA TU516-XC DA502-XC 1SAP450800R0001 0.200
05

Function module
• Not hot swap capable
Functionality Number of Input signal Output type Output signal Terminal Type Order code Price Weight
unit (1 pce)
DI/DO/DC kg
Encoder and 2 / – / 8 24 V DC and 2 PWM – TU516-XC CD522-XC 1SAP460300R0001 0.125
PWM module 2 encoder inputs outputs

Fast I/O module for direct mounting on the terminal base of the AC500 CPU
Functionality Number of Input signal Output type Output signal Terminal Type Order code Price Weight
unit (1 pce)
DI/DO/DC kg
Interrupt I/O – / – / 8 24 V DC Transistor 24 V DC, 0.5 A N/A (2) DC541-CM-XC 1SAP470000R0001 0.100
and fast counter (1)
(1) Function module, refer to table on page 178 for details. Terminal block for I/O signal connection included.
(2) Occupies a communication module slot.

— — — — —
AI523-XC AI531-XC DA501-XC CD522-XC DC541-CM-XC
