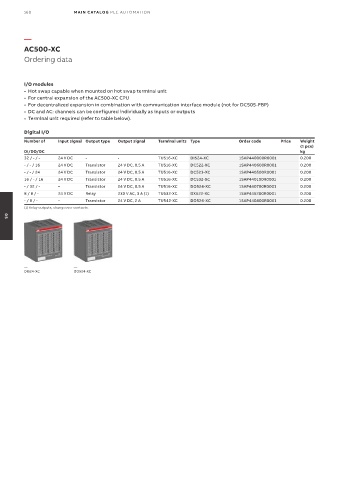

160 MAIN CATALOG PLC AUTOMATION

—
AC500-XC
Ordering data

I/O modules
• Hot swap capable when mounted on hot swap terminal unit
• For central expansion of the AC500-XC CPU
• For decentralized expansion in combination with communication interface module (not for DC505-FBP)
• DC and AC: channels can be configured individually as inputs or outputs
• Terminal unit required (refer to table below).

Digital I/O
Number of Input signal Output type Output signal Terminal units Type Order code Price Weight
(1 pce)
DI/DO/DC kg
32 / - / - 24 V DC - - TU516-XC DI524-XC 1SAP440000R0001 0.200
- / - / 16 24 V DC Transistor 24 V DC, 0.5 A TU516-XC DC522-XC 1SAP440600R0001 0.200
- / - / 24 24 V DC Transistor 24 V DC, 0.5 A TU516-XC DC523-XC 1SAP440500R0001 0.200
16 / - / 16 24 V DC Transistor 24 V DC, 0.5 A TU516-XC DC532-XC 1SAP440100R0001 0.200
- / 32 / - – Transistor 24 V DC, 0.5 A TU516-XC DO524-XC 1SAP440700R0001 0.200
8 / 8 / - 24 V DC Relay 230 V AC, 3 A (1) TU532-XC DX522-XC 1SAP445200R0001 0.200
- / 8 / - – Transistor 24 V DC, 2 A TU542-XC DO526-XC 1SAP440800R0001 0.200
(1) Relay outputs, changeover contacts.

05

— —
DI524-XC DO524-XC
