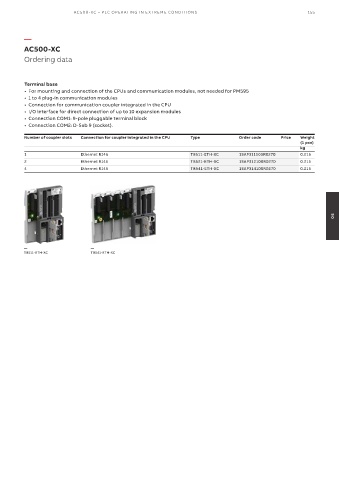

AC500 -XC – PLC OPER ATING IN EXTREME CONDITIONS 155

—
AC500-XC
Ordering data

Terminal base
• For mounting and connection of the CPUs and communication modules, not needed for PM595
• 1 to 4 plug-in communication modules
• Connection for communication coupler integrated in the CPU
• I/O interface for direct connection of up to 10 expansion modules
• Connection COM1: 9-pole pluggable terminal block
• Connection COM2: D-Sub 9 (socket).

Number of coupler slots Connection for coupler integrated in the CPU Type Order code Price Weight
(1 pce)
kg
1 Ethernet RJ45 TB511-ETH-XC 1SAP311100R0270 0.215
2 Ethernet RJ45 TB521-ETH-XC 1SAP312100R0270 0.215
4 Ethernet RJ45 TB541-ETH-XC 1SAP314100R0270 0.215

05

— —
TB511-ETH-XC TB541-ETH-XC
