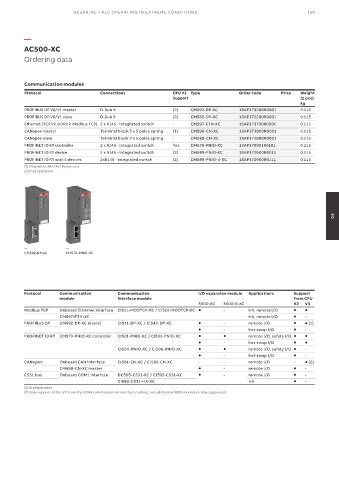

AC500 -XC – PLC OPER ATING IN EXTREME CONDITIONS 159

—
AC500-XC
Ordering data

Communication modules
Protocol Connections CPU V3 Type Order code Price Weight
Support (1 pce)
kg
PROFIBUS DP V0/V1 master D-Sub 9 (2) CM592-DP-XC 1SAP373200R0001 0.115
PROFIBUS DP V0/V1 slave D-Sub 9 (2) CM582-DP-XC 1SAP372200R0001 0.115
Ethernet (TCP/IP, UDP/IP, Modbus TCP) 2 x RJ45 - integrated switch - CM597-ETH-XC 1SAP373700R0001 0.115
CANopen master Terminal block 2 x 5 poles spring (1) CM598-CN-XC 1SAP373800R0001 0.115
CANopen slave Terminal block 2 x 5 poles spring - CM588-CN-XC 1SAP372800R0001 0.115
PROFINET IO RT controller 2 x RJ45 - integrated switch Yes CM579-PNIO-XC 1SAP370901R0101 0.115
PROFINET IO RT device 2 x RJ45 - integrated switch (2) CM589-PNIO-XC 1SAP372900R0011 0.115
PROFINET IO RT with 4 devices 2xRJ45 - integrated switch (2) CM589-PNIO-4-XC 1SAP372900R0111 0.115
(1) Only with CAN 2A/2B protocol
(2) In preparation

05

— —
CM592-DP-XC CM579-PNIO-XC

Protocol Communication Communication I/O expansion module Applications Support
module interface module from CPU
S500-XC S500-S-XC V2 V3
Modbus TCP Onboard Ethernet interface CI521-MODTCP-XC / CI522-MODTCP-XC  - HA, remote I/O  
CM597-ETH-XC HA, remote I/O  -
PROFIBUS DP CM592-DP-XC master CI541-DP-XC / CI542-DP-XC  - remote I/O   (1)
 - hot-swap I/O  -
PROFINET IO RT CM579-PNIO-XC controller CI501-PNIO-XC / CI502-PNIO-XC   remote I/O, safety I/O  
 - hot-swap I/O  
CI504-PNIO-XC / CI506-PNIO-XC   remote I/O, safety I/O  -
 - hot-swap I/O  -
CANopen Onboard CAN interface CI581-CN-XC / CI582-CN-XC - - remote I/O -  (2)
CM598-CN-XC master  - remote I/O  -
CS31 bus Onboard COM1 interface DC505-CS31-XC / CI592-CS31-XC  - remote I/O  -
CI590-CS31-HA-XC HA  -
(1) In preparation
(2) Only support of the I/O from the CI58x communication interface module, not additional S500 modules today supported
