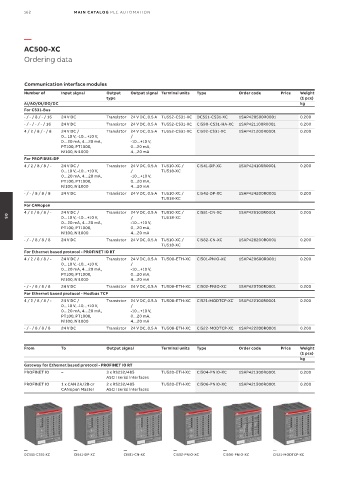

162 MAIN CATALOG PLC AUTOMATION

—
AC500-XC
Ordering data

Communication interface modules
Number of Input signal Output Output signal Terminal units Type Order code Price Weight
type (1 pce)
AI/AO/DI/DO/DC kg
For CS31-Bus
- / - / 8 / - / 16 24 V DC Transistor 24 V DC, 0.5 A TU552-CS31-XC DC551-CS31-XC 1SAP420500R0001 0.200
- / - / - / - / 16 24 V DC Transistor 24 V DC, 0.5 A TU552-CS31-XC CI590-CS31-HA-XC 1SAP421100R0001 0.200
4 / 2 / 8 / - / 8 24 V DC / Transistor 24 V DC, 0.5 A TU552-CS31-XC CI592-CS31-XC 1SAP421200R0001 0.200
0…10 V, -10…+10 V, /
0…20 mA, 4…20 mA, -10…+10 V,
PT100, PT1000, 0…20 mA,
Ni100, Ni1000 4…20 mA
For PROFIBUS-DP
4 / 2 / 8 / 8 / - 24 V DC / Transistor 24 V DC, 0.5 A TU510-XC / CI541-DP-XC 1SAP424100R0001 0.200
0…10 V, -10…+10 V, / TU518-XC
0…20 mA, 4…20 mA, -10…+10 V,
PT100, PT1000, 0…20 mA,
Ni100, Ni1000 4…20 mA
- / - / 8 / 8 / 8 24 V DC Transistor 24 V DC, 0.5 A TU510-XC / CI542-DP-XC 1SAP424200R0001 0.200
TU518-XC
For CANopen
4 / 2 / 8 / 8 / - 24 V DC / Transistor 24 V DC, 0.5 A TU510-XC / CI581-CN-XC 1SAP428100R0001 0.200
0…10 V, -10…+10 V, / TU518-XC
05
0…20 mA, 4…20 mA, -10…+10 V,
PT100, PT1000, 0…20 mA,
Ni100, Ni1000 4…20 mA
- / - / 8 / 8 / 8 24 V DC Transistor 24 V DC, 0.5 A TU510-XC / CI582-CN-XC 1SAP428200R0001 0.200
TU518-XC
For Ethernet based protocol - PROFINET IO RT
4 / 2 / 8 / 8 / - 24 V DC / Transistor 24 V DC, 0.5 A TU508-ETH-XC CI501-PNIO-XC 1SAP420600R0001 0.200
0…10 V, -10…+10 V, /
0…20 mA, 4…20 mA, -10…+10 V,
PT100, PT1000, 0…20 mA,
Ni100, Ni1000 4…20 mA
- / - / 8 / 8 / 8 24 V DC Transistor 24 V DC, 0.5 A TU508-ETH-XC CI502-PNIO-XC 1SAP420700R0001 0.200
For Ethernet based protocol - Modbus TCP
4 / 2 / 8 / 8 / - 24 V DC / Transistor 24 V DC, 0.5 A TU508-ETH-XC CI521-MODTCP-XC 1SAP422100R0001 0.200
0…10 V, -10…+10 V, /
0…20 mA, 4…20 mA, -10…+10 V,
PT100, PT1000, 0…20 mA,
Ni100, Ni1000 4…20 mA
- / - / 8 / 8 / 8 24 V DC Transistor 24 V DC, 0.5 A TU508-ETH-XC CI522-MODTCP-XC 1SAP422200R0001 0.200

From To Output signal Terminal units Type Order code Price Weight
(1 pce)
kg
Gateway for Ethernet based protocol - PROFINET IO RT
PROFINET IO – 3 x RS232/485 TU520-ETH-XC CI504-PNIO-XC 1SAP421300R0001 0.200
ASCII serial interfaces
PROFINET IO 1 x CAN 2A/2B or 2 x RS232/485 TU520-ETH-XC CI506-PNIO-XC 1SAP421500R0001 0.200
CANopen Master ASCII serial interfaces

— — — — — —
DC551-CS31-XC CI541-DP-XC CI581-CN-XC CI502-PNIO-XC CI506-PNIO-XC CI521-MODTCP-XC
