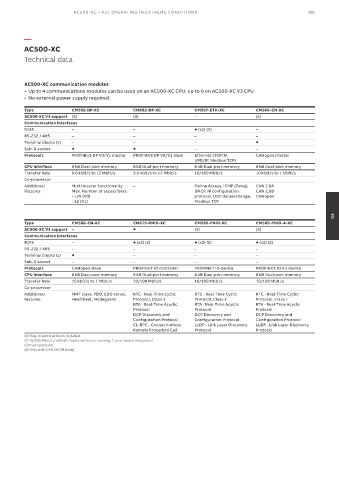

AC500 -XC – PLC OPER ATING IN EXTREME CONDITIONS 181

—
AC500-XC
Technical data

AC500-XC communication modules
• Up to 4 communications modules can be used on an AC500-XC CPU, up to 6 on AC500-XC V3 CPU.
• No external power supply required.

Type CM592-DP-XC CM582-DP-XC CM597-ETH-XC CM598-CN-XC
AC500-XC V3 support (3) (3) – (4)
Communication interfaces
RJ45 – –  (x2) (2) –
RS-232 / 485 – – – –
Terminal blocks (1) – – – 
Sub-D socket   – –
Protocols PROFIBUS DP V0/V1 master PROFIBUS DP V0/V1 slave Ethernet (TCP/IP, CANopen master
UPD/IP, Modbus TCP)
CPU interface 8 kB Dual-port memory 8 kB Dual-port memory 8 kB Dual-port memory 8 kB Dual-port memory
Transfer Rate 9.6 kbit/s to 12 Mbit/s 9.6 kbit/s to 12 Mbit/s 10/100 Mbit/s 10 kbit/s to 1 Mbit/s
Co-processor
Additional Multi master functionality – Online Access, ICMP (Pimg), CAN 2.0A
features Max. Number of subscribers: DHCP, IP configuration CAN 2.0B
- 126 (V0) protocol, UDP dataexchange, CANopen
- 32 (V1) Modbus TCP

05
Type CM588-CN-XC CM579-PNIO-XC CM589-PNIO-XC CM589-PNIO-4-XC
AC500-XC V3 support –  (3) (3)
Communication interfaces
RJ45 –  (x2) (2)  (x2) (2)  (x2) (2)
RS-232 / 485 – – – –
Terminal blocks (1)  – – –
Sub-D socket – – – –
Protocols CANopen slave PROFINET IO controller PROFINET IO device PROFINET IO 4 x device
CPU interface 8 kB Dual-port memory 8 kB Dual-port memory 8 kB Dual-port memory 8 kB Dual-port memory
Transfer Rate 10 kbit/s to 1 Mbit/s 10/100 Mbit/s 10/100 Mbit/s 10/100 Mbit/s
Co-processor
Additional NMT slave, PDO, SDO server, RTC - Real-Time Cyclic RTC - Real-Time Cyclic RTC - Real-Time Cyclic
features Heartbeat, Nodeguard Protocol, Class 1 Protocol, Class 1 Protocol, Class 1
RTA - Real-Time Acyclic RTA - Real-Time Acyclic RTA - Real-Time Acyclic
Protocol Protocol Protocol
DCP Discovery and DCP Discovery and DCP Discovery and
Configuration Protocol Configuration Protocol Configuration Protocol
CL-RPC - Connectionless LLDP - Link Layer Discovery LLDP - Link Layer Discovery
Remote Procedure Call Protocol Protocol
(1) Plug-in terminal block included.
(2) 10/100 Mbit/s, full/half duplex with auto-sensing, 2-port switch integrated.
(3) In preparation
(4) Only with CAN 2A/2B today
