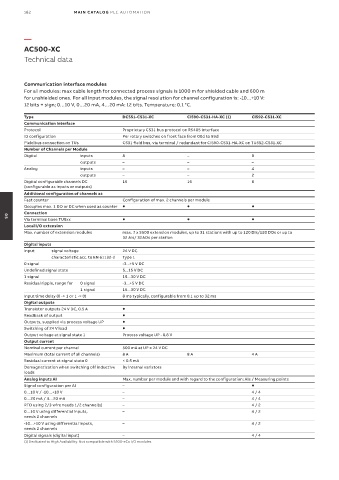

AC500-XC
Technical data

Communication interface modules
For all modules: max cable length for connected process signals is 1000 m for shielded cable and 600 m
for unshielded ones. For all Input modules, the signal resolution for channel configuration is: -10…+10 V:
12 bits + sign; 0…10 V, 0…20 mA, 4…20 mA: 12 bits. Temperature: 0.1 °C.

Type DC551-CS31-XC CI590-CS31-HA-XC (1) CI592-CS31-XC
Communication Interface
Protocol Proprietary CS31 bus protocol on RS485 interface
ID configuration Per rotary switches on front face from 00d to 99d
Field bus connection on TUs CS31 field bus, via terminal / redundant for CI590-CS31-HA-XC on TU552-CS31-XC
Number of Channels per Module
Digital inputs 8 – 8
outputs – – –
Analog inputs – – 4
outputs – – 2
Digital configurable channels DC 16 16 8
(configurable as inputs or outputs)
Additional configuration of channels as
Fast counter Configuration of max. 2 channels per module
Occupies max. 1 DO or DC when used as counter   
Connection
Via terminal base TU5xx   
05
Local I/O extension
Max. number of extension modules max. 7 x S500 extension modules, up to 31 stations with up to 120 DIs/120 DOs or up to
32 AIs/ 32AOs per station
Digital inputs
Input signal voltage 24 V DC
characteristic acc. to EN 61132-2 Type 1
0 signal -3...+5 V DC
Undefined signal state 5...15 V DC
1 signal 15...30 V DC
Residual ripple, range for 0 signal -3...+5 V DC
1 signal 15...30 V DC
Input time delay (0 -> 1 or 1 -> 0) 8 ms typically, configurable from 0.1 up to 32 ms
Digital outputs
Transistor outputs 24 V DC, 0.5 A 
Readback of output 
Outputs, supplied via process voltage UP 
Switching of 24 V load 
Output voltage at signal state 1 Process voltage UP - 0.8 V
Output current
Nominal current per channel 500 mA at UP = 24 V DC
Maximum (total current of all channels) 8 A 8 A 4 A
Residual current at signal state 0 < 0.5 mA
Demagnetization when switching off inductive By internal varistors
loads
Analog inputs AI Max. number per module and with regard to the configuration: AIs / Measuring points
Signal configuration per AI – 
0…10 V / -10…+10 V – 4 / 4
0…20 mA / 4…20 mA – 4 / 4
RTD using 2/3 wire needs 1/2 channel(s) – 4 / 2
0…10 V using differential inputs, – 4 / 2
needs 2 channels
-10…+10 V using differential inputs, – 4 / 2
needs 2 channels
Digital signals (digital input) – 4 / 4
(1) Dedicated to High Availability. Not compatible with S500-eCo I/O modules.
