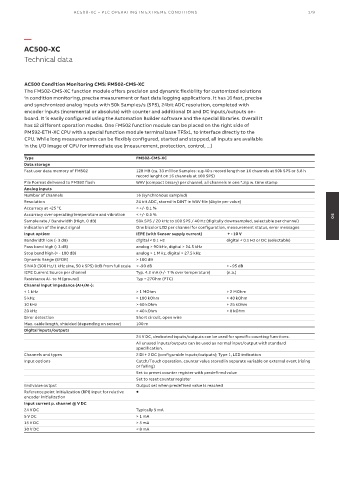

AC500 -XC – PLC OPER ATING IN EXTREME CONDITIONS                                  179




          —
          AC500-XC
          Technical data




          AC500 Condition Monitoring CMS: FM502-CMS-XC
          The FM502-CMS-XC function module offers precision and dynamic flexibility for customized solutions
          in condition monitoring, precise measurement or fast data logging applications. It has 16 fast, precise
          and synchronized analog inputs with 50k Samples/s (SPS), 24bit ADC resolution, completed with
          encoder inputs (incremental or absolute) with counter and additional DI and DC inputs/outputs on-
          board. It is easily configured using the Automation Builder software and the special libraries. Overall it
          has 12 different operation modes. One FM502 function module can be placed on the right side of
          PM592-ETH-XC CPU with a special function module terminal base TF5x1, to interface directly to the
          CPU. While long measurements can be flexibly configured, started and stopped, all inputs are available
          in the I/O Image of CPU for immediate use (measurement, protection, control, ...)

          Type                                   FM502-CMS-XC
          Data storage
          Fast user data memory of FM502         128 MB (ca. 33 million Samples: e.g 40 s record length on 16 channels at 50k SPS or 5.8 h
                                                 record lenght on 16 channels at 100 SPS)
          File Format delivered to PM592 flash   WAV (compact binary) per channel, all channels in one *.zip w. time stamp
          Analog inputs
          Number of channels                     16 (synchronous sampled)
          Resolution                             24 bit ADC, stored in DINT in WAV file (4byte per value)
          Accurracy at +25 °C                    < +/- 0.1 %
          Accurracy over operating temperature and vibration  < +/- 0.5 %                                             05
          Sample rate / Bandwidth (High, 0 dB)   50k SPS / 20 kHz to 100 SPS / 40 Hz (digitally downsampled, selectable per channel)
          Indication of the input signal         One bicolor LED per channel for configuration, measurement status, error messages
          Input option:                          IEPE (with Sensor supply current)   + - 10 V
          Bandwidth low (- 3 dB)                 digital < 0.1 Hz                digital < 0.1 Hz or DC (selectable)
          Pass band high (- 3 dB)                analog > 90 kHz, digital > 24.5 kHz
          Stop band high (> - 100 dB)            analog > 1 MHz, digital > 27.5 kHz
          Dynamic Range (SFDR)                   > 100 dB
          SINAD (300 Hz/1 kHz sine, 50 k SPS) 0dB from full scale  < -90 dB      < - 95 dB
          IEPE Current Source per channel        Typ. 4.2 mA (+/- 7 % over temperature)  (n.a.)
          Resistance AI- to M (ground)           Typ ~ 27Ohm (PTC)
          Channel input impedance (AI+/AI-):
          < 1 kHz                                > 1 MOhm                        > 2 MOhm
          5 kHz                                  > 100 kOhm                      > 40 kOhm
          10 kHz                                 > 60 kOhm                       > 25 kOhm
          20 kHz                                 > 40 kOhm                       > 8 kOhm
          Error detection                        Short circuit, open wire
          Max. cable length, shielded (depending on sensor)  100 m
          Digital inputs/outputs
                                                 24 V DC, dedicated inputs/outputs can be used for specific counting functions.
                                                 All unused inputs/outputs can be used as normal input/output with standard
                                                 specification.
          Channels and types                     2 DI + 2 DC (configurable inputs/outputs); Type 1, LED indication
          Input options                          Catch/Touch operation, counter value stored in separate variable on external event (rising
                                                 or falling)
                                                 Set to preset counter register with predefined value
                                                 Set to reset counter register
          End value output                       Output set when predefined value is reached
          Reference point initialization (RPI) input for relative   
          encoder initialization
          Input current p. channel @ V DC
          24 V DC                                Typically 5 mA
          5 V DC                                 > 1 mA
          15 V DC                                > 5 mA
          30 V DC                                < 8 mA
