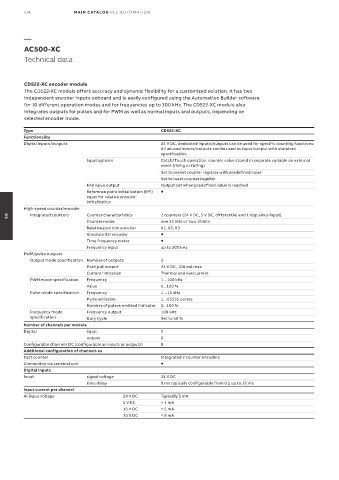

AC500-XC
Technical data

CD522-XC encoder module
The CD522-XC module offers accuracy and dynamic flexibility for a customized solution. It has two
independent encoder inputs onboard and is easily configured using the Automation Builder software
for 10 different operation modes and for frequencies up to 300 kHz. The CD522-XC module also
integrates outputs for pulses and for PWM as well as normal inputs and outputs, depending on
selected encoder mode.

Type CD522-XC
Functionality
Digital inputs/outputs 24 V DC, dedicated inputs/outputs can be used for specific counting functions.
All unused inputs/outputs can be used as input/output with standard
specification.
Input options Catch/Touch operation, counter value stored in separate variable on external
event (rising or falling)
Set to preset counter register with predefined value
Set to reset counter register
End value output Output set when predefined value is reached
Reference point initialization (RPI) 
input for relative encoder
initialization
High-speed counter/encoder
Integrated counters Counter characteristics 2 counters (24 V DC, 5 V DC, differential and 1 Vpp sinus input)
Counter mode one 32 bits or two 16 bits
05
Relative position encoder X1, X2, X3
Absolute SSI encoder 
Time frequency meter 
Frequency input up to 300 kHz
PWM/pulse outputs
Output mode specification Number of outputs 2
Push pull output 24 V DC, 100 mA max
Current limitation Thermal and overcurrent
PWM mode specification Frequency 1…100 kHz
Value 0...100 %
Pulse mode specification Frequency 1…15 kHz
Pulse emission 1…65535 pulses
Number of pulses emitted indicator 0...100 %
Frequency mode Frequency output 100 kHz
specification Duty Cycle Set to 50 %
Number of channels per module
Digital input 2
output 2
Configurable channels DC (configurable as inputs or outputs) 8
Additional configuration of channels as
Fast counter Integrated 2 counter encoders
Connection via terminal unit 
Digital Inputs
Input signal voltage 24 V DC
time delay 8 ms typically configurable from 0.1 up to 32 ms
Input current per channel
At input voltage 24 V DC Typically 5 mA
5 V DC > 1 mA
15 V DC > 5 mA
30 V DC < 8 mA
