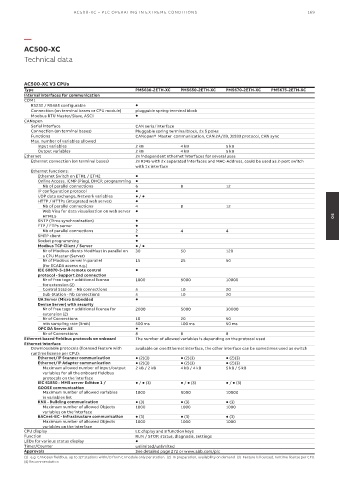

AC500 -XC – PLC OPER ATING IN EXTREME CONDITIONS 169

—
AC500-XC
Technical data

AC500-XC V3 CPUs
Type PM5630-2ETH-XC PM5650-2ETH-XC PM5670-2ETH-XC PM5675-2ETH-XC
Internal interfaces for communication
COM1
RS232 / RS485 configurable 
Connection (on terminal bases or CPU module) pluggable spring terminal block
Modbus RTU Master/Slave, ASCII 
CANopen
Serial interface CAN serial interface
Connection (on terminal bases) Pluggable spring terminal block, 2x 5 poles
Functions CANopen® Master communication, CAN 2A/2B, J1939 protocol, CAN sync
Max. number of variables allowed
Input variables 2 kB 4 kB 5 kB
Output variables 2 kB 4 kB 5 kB
Ethernet 2x independent Ethernet interfaces for several uses
Ethernet connection (on terminal bases) 2x RJ45 with 2x separated interfaces and MAC-Address, could be used as 2-port switch
with 1x interface
Ethernet functions:
Ethernet Switch on ETH1 / ETH2 
Online Access, ICMP (Ping), DHCP, programming 
Nb of parallel connections 6 8 12
IP configuration protocol 
UDP data exchange, Network variables  / 
HTTP / HTTPs (integrated web server) 
Nb of parallel connections 4 8 12
Web Visu for data visualisation on web server 
HTML5 05
SNTP (Time synchronization) 
FTP / FTPs server 
Nb of parallel connections 2 4 4
SMTP client 
Socket programming 
Modbus TCP Client / Server  / 
Nr of Modbus clients ModMast in parallel on 30 50 120
a CPU Master (Server)
Nr of Modbus server in parallel 15 25 50
(for SCADA access e.g.)
IEC 60870-5-104 remote control 
protocol - Support 2nd connection
Nr of free tags + additional license 1000 5000 10000
for extension (2)
Control Station - Nb connections 5 10 20
Sub-Station - Nb connections 5 10 20
UA Server (Micro Embedded 
Device Server) with security
Nr of free tags + additional license for 2000 5000 30000
extension (2)
Nr of Connections 10 20 50
min sampling rate (limit) 500 ms 100 ms 50 ms
OPC DA Server AE 
Nr of Connections 8 8 8
Ethernet based fieldbus protocols on onboard The number of allowed variables is depending on the protocol used
Ethernet interface
Downloadable protocols (licensed feature with available on one Ethernet interface, the other interface can be sometimes used as switch
runtime license per CPU):
Ethernet/IP Scanner communication  (2)(3)  (2)(3)  (2)(3)
Ethernet/IP Adapter communication  (2)(3)  (2)(3)  (2)(3)
Maximum allowed number of input/output 2 kB / 2 kB 4 kB / 4 kB 5 kB / 5 kB
variables for all the onboard fieldbus
protocols on the interface
IEC 61850 - MMS server Edition 1 /  /  (3)  /  (3)  /  (3)
GOOSE communication
Maximum number of allowed variables 1000 5000 10000
in variables list
KNX - Building communication  (3)  (3)  (3)
Maximum number of allowed Objects 1000 1000 1000
variables on the interface
BACnet-BC - Infrastructure communication  (3)  (3)  (3)
Maximum number of allowed Objects 1000 1000 1000
variables on the interface
CPU display LC display and 8 function keys
Function RUN / STOP, status, diagnosis, settings
LEDs for various status display 
Timer/Counter unlimited/unlimited
Approvals See detailed page 272 or www.abb.com/plc
(1) e.g. CANopen fieldbus: up to 127 stations withI/O from CI module only per station. (2) In preparation, availability on demand (3) Feature is licensed, runtime license per CPU.
(4) Recommendation
