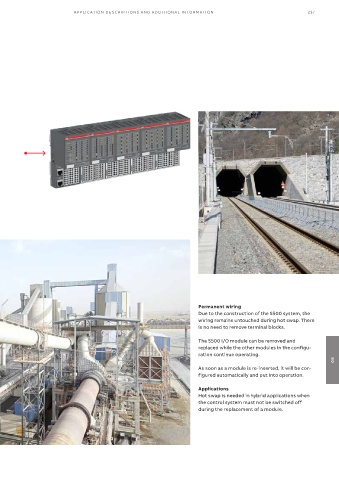

APPLIC ATION DESCRIPTIONS AND ADDITIONAL INFORMATION 237
Permanent wiring
Due to the construction of the S500 system, the
wiring remains untouched during hot swap. There
is no need to remove terminal blocks.
The S500 I/O module can be removed and
replaced while the other modules in the configu-
ration continue operating.
08
As soon as a module is re-inserted, it will be con-
figured automatically and put into operation.
Applications
Hot swap is needed in hybrid applications when
the control system must not be switched off
during the replacement of a module.
