APPLIC ATION DESCRIPTIONS AND ADDITIONAL INFORMATION 241
—

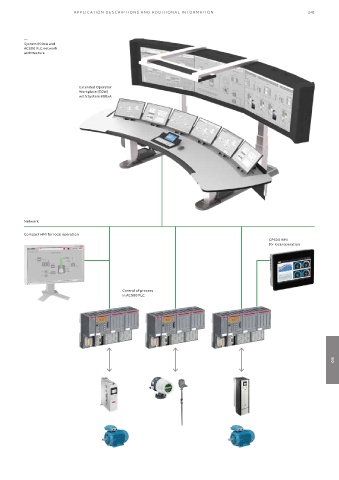

System 800xA and
AC500 PLC network
architecture
Extended Operator
Workplace (EOW)
with System 800xA
Network
Compact HMI for local operation
CP600 HMI
for local operation
Control of process
in AC500 PLC
