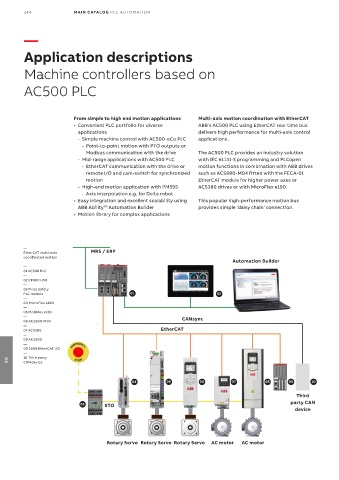

244 MAIN CATALOG PLC AUTOMATION

—

Application descriptions

Machine controllers based on

AC500 PLC

From simple to high end motion applications Multi-axis motion coordination with EtherCAT
• Convenient PLC portfolio for diverse ABB's AC500 PLC using EtherCAT real-time bus
applications delivers high performance for multi-axis control
- Simple machine control with AC500-eCo PLC applications.
- Point-to-point motion with PTO outputs or
Modbus communication with the drive The AC500 PLC provides an industry solution
- Mid-range applications with AC500 PLC with IEC 61131-3 programming and PLCopen
- EtherCAT communication with the drive or motion functions in combination with ABB drives
remote I/O and cam-switch for synchronized such as ACS880-M04 fitted with the FECA-01
motion EtherCAT module for higher power axes or
- High-end motion application with PM595 ACS380 drives or with MicroFlex e190.
- Axis interpolation e.g. for Delta robot
• Easy integration and excellent scalability using This popular high-performance motion bus
ABB Ability Automation Builder provides simple ‘daisy chain’ connection.
TM
• Motion library for complex applications

—
EtherCAT multi-axis MRS / ERP
coordinated motion
Automation Builder
—
01 AC500 PLC
—
02 CP600 HMI
—
03 Pluto Safety
PLC module 01 02
—
04 MicroFlex e190
—
05 MotiFlex e180
— CANsync
06 ACS880-M04
—
07 ACS380 EtherCAT
—
08 ACS880
—
09 S500 EtherCAT I/O
—
10 Third party
CAN device 9
08

04 05 06 07 08 09 10

Third
party CAN
03 STO
device

Rotary Servo Rotary Servo Rotary Servo AC motor AC motor
