AC500 Condition Measurements
Monitoring module • High frequency Vibration Vibration Vibration Drives
FM502-CMS: Controller
integrated or stand- • Low frequency mm/s mm/s mm/s parameters
alone CMS covering a
complete drive train.
Process parameters: °C rpm, N °C rpm, Nm °C V, A W
x, y, z
GG M
Load Load

Product Quality µm

07
ABB Ability™
10

06
05

08

02
01

—
01 Winder
03 —
02 Main motor
—
03 Gearbox
—
04 Rolling mill
—
— 05 Vibration sensor
Acceleration sensor 04 09 —
mounting for integrated 06 Sensor cable
condition monitoring —
in cold rolling mill. With 07 AC500 CMS controller integrated
local warnings by key —
performance indicators, 08 Local / remote warning
first analysis with —
detailed verification 09 Detailed analysis local / remote
possibility via CP600 — 08
and remote connectivity.
10 Connectivity

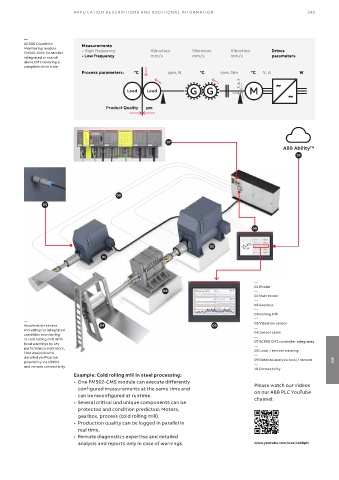

Example: Cold rolling mill in steel processing:
• One FM502-CMS module can execute differently Please watch our videos
configured measurements at the same time and on our ABB PLC YouTube
can be reconfigured at runtime.
• Several critical und unique components can be channel:
protected and condition predicted: Motors,
gearbox, process (cold rolling mill).
• Production quality can be logged in parallel in
real time.
• Remote diagnostics expertise and detailed
analysis and reports only in case of warnings. www.youtube.com/user/abbplc
