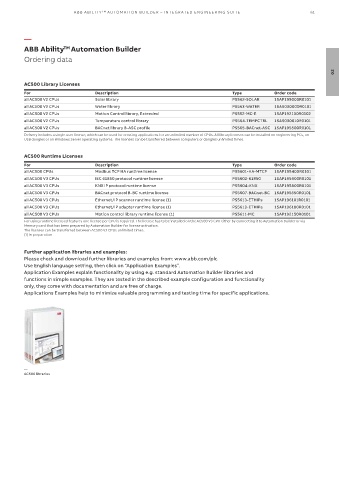

ABB ABILIT Y  TM  AUTOMATION BUILDER – INTEGR ATED ENGINEERING SUITE               61




          —
          ABB Ability Automation Builder
                       TM
          Ordering data

                                                                                                                      02

          AC500 Library Licenses
          For                     Description                                      Type          Order code
          all AC500 V2 CPUs       Solar library                                    PS562-SOLAR   1SAP195000R0101
          all AC500 V2 CPUs       Water library                                    PS563-WATER   1SAS030000R0101
          all AC500 V2 CPUs       Motion Control library, Extended                 PS552-MC-E    1SAP192100R0102
          all AC500 V2 CPUs       Temperature control library                      PS564-TEMPCTRL  1SAS030010R0101
          all AC500 V2 CPUs       BACnet library B-ASC profile                     PS565-BACnet-ASC  1SAP195500R0101
          Delivery includes a single user license, which can be used for creating applications for an unlimited number of CPUs. All library licenses can be installed on engineering PCs, on
          USB dongles or on Windows Server operating systems. The licenses can be transferred between computers or dongles unlimited times.


          AC500 Runtime Licenses
          For                     Description                                      Type          Order code
          all AC500 CPUs          Modbus TCP HA runtime license                    PS5601-HA-MTCP  1SAP195400R0101
          all AC500 V3 CPUs       IEC 61850 protocol runtime license               PS5602-61850  1SAP195600R0101
          all AC500 V3 CPUs       KNX IP protocol runtime license                  PS5604-KNX    1SAP195800R0101
          all AC500 V3 CPUs       BACnet protocol B-BC runtime license             PS5607-BACnet-BC  1SAP195550R0101
          all AC500 V3 CPUs       Ethernet/IP scanner runtime license (1)          PS5613-ETHIPs  1SAP196101R0101
          all AC500 V3 CPUs       Ethernet/IP adapter runtime license (1)          PS5613-ETHIPa  1SAP196100R0101
          all AC500 V3 CPUs       Motion control library runtime license (1)       PS5611-MC     1SAP192150R0101
          For using runtime licensed features one license per CPU is required. The license has to be installed on the AC500 V3 CPU either by connecting it to Automation Builder or via
          Memory card that has been prepared by Automation Builder for license activation.
          The licenses can be transferred between AC500 V3 CPUs unlimited times.
          (1) In preparation

          Further application libraries and examples:
          Please check and download further libraries and examples from: www.abb.com/plc
          Use English language setting, then click on “Application Examples”.
          Application Examples explain functionality by using e.g. standard Automation Builder libraries and
          functions in simple examples. They are tested in the described example configuration and functionality
          only, they come with documentation and are free of charge.
          Applications Examples help to minimize valuable programming and testing time for specific applications.














          —
          AC500 libraries
