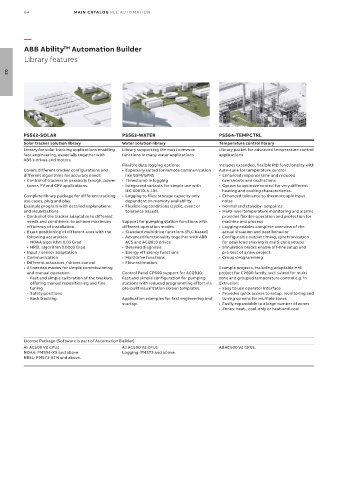

64 MAIN CATALOG PLC AUTOMATION

—
ABB Ability Automation Builder
TM
Library features

02

PS562-SOLAR PS563-WATER PS564-TEMPCTRL
Solar tracker solution library Water solution library Temperature control library
Library for solar tracking applications enabling Library supporting the most common Library packet for advanced temperature control
fast engineering, especially together with functions in many water applications applications
ABB's drives and motors
Flexible data logging options: Includes extended, flexible PID functionality with
Covers different tracker configurations and • Especially suited for remote communication Auto-tune for temperature control
different algorithms for accuracy needs like GSM/GPRS • Enhanced response time and reduced
• Control of trackers in parabolic trough, power • Timestamp in logging overshoots and oscillations
tower, PV and CPV applications. • Integrated variants for simple use with • Option to optimize control for very different
IEC 60870-5-104 heating and cooling characteristics.
Complete library package for different tracking • Logging to files: storage capacity only • Enhanced tolerance to thermocouple input
use cases, plug and play: dependent on memory availability noise
Example program with detailed explanations • Flexible log conditions (cyclic, event or • Normal and standby- setpoints
and visualizations tolerance based). • Multi-level temperature monitoring and alarms
• Control of the tracker adaptable to different provides flexible operation and protection for
needs and conditions, to achieve maximum Support for pumping station functions with machine and process
efficiency of installation different operation modes • Logging enables complete overview of the
• Exact positioning of different axes with the • Standard multidrive functions (PLC based) actual situation and past behavior
following accuracies: • Advanced functionality together with ABB • Configurable output timing, synchronization
- NOAA algorithm 0.03 Grad ACS and ACQ810 drives for peak load shaving in multi-zone setups
- NREL algorithm 0.0003 Grad. • Detailed diagnosis • Simulation blocks enable off-line setup and
• Input / sensor adaptation • Energy efficiency functions pre-test of a new project
• Communication • Multidrive functions • Group-programming
• Different actuators / drives control • Flow estimation.
• All needed modes for simple commissioning Example projects, including adaptable HMI
and manual operation: Control Panel CP600 support for ACQ810: project for CP600 family, well suited for multi
- Fast and simple calibration of the trackers, Fast and simple configuration for pumping zone and grouped temperature control e.g. in
offering manual repo sitioning and fine stations with reduced programming effort via Extrusion:
tuning pre-built visualization screen templates. • Easy to use operator interface
- Safety positions • Provides quick access to setup, monitoring and
- Back tracking. Application examples for fast engineering and tuning screens for multiple zones
startup. • Easily expandable to a large number of zones
• Zones: heat-, cool-only or heat-and-cool

License Package (Software is part of Automation Builder)
All AC500 V2 CPUs All AC500 V2 CPUs All AC500 V2 CPUs.
NOAA: PM554-XX and above Logging: PM573 and above.
NREL: PM573-ETH and above.
