ABB ABILIT Y TM AUTOMATION BUILDER – INTEGR ATED ENGINEERING SUITE 63

—

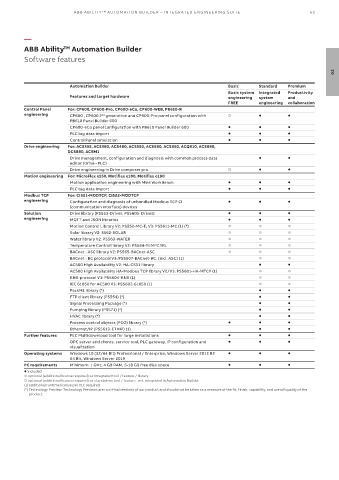

ABB Ability Automation Builder
TM
Software features

02

Automation Builder Basic Standard Premium
Basic system Integrated Productivity
Features and target hardware engineering system and
FREE engineering collaboration
Control Panel For: CP600, CP600-Pro, CP600-eCo, CP600-WEB, PB610-R
engineering CP600 , CP600 2 generation and CP600-Pro panel configuration with   
nd
PB610 Panel Builder 600
CP600-eCo panel configuration with PB610 Panel Builder 600   
PLC tag data import   
Control Panel simulation   
Drive engineering For: ACS355, ACS380, ACS480, ACS550, ACS580, ACS850, ACQ810, ACS880,
DCS880, ACSM1
Drive management, configuration and diagnosis with common process data  
editor (Drive - PLC)
Drive engineering in Drive composer pro   
Motion engineering For: MicroFlex e150, Motiflex e180, Motiflex e190
Motion application engineering with Mint WorkBench   
PLC tag data import   
Modbus TCP For: CI521-MODTCP, CI522-MODTCP
engineering Configuration and diagnosis of unbundled Modbus TCP CI   
(communication interface) devices
Solution Drive library (PS553-Drives, PS5605-Drives)   
engineering MQTT and JSON libraries   
Motion Control Library V2: PS552-MC-E; V3: PS5611-MC (1) (*)   
Solar library V2: S562-SOLAR   
Water library V2: PS563-WATER   
Temperature Control library V2: PS564-TEMPCTRL   
BACnet - ASC library V2: PS565-BACnet-ASC   
BACnet - BC protocol V3: PS5607-BACnet-BC, (incl. ASC) (1)  
AC500 High Availability V2: HA-CS31 library  
AC500 High Availability HA-Modbus TCP library V2/V3: PS5601-HA-MTCP (1)  
KNX-protocol V3: PS5604-KNX (1)  
IEC 61850 for AC500 V3: PS5602-61850 (1)  
PackML library (*)  
FTP client library (PS554) (*)  
Signal Processing Package (*)  
Pumping library (PS571) (*)  
HVAC library (*)  
Process control objects (PCO) library (*)   
Ethernet/IP (PS5613-ETHIP) (1)  
Further features PLC Multidownload tool for large installations   
OPC server and clients, service tool, PLC gateway, IP configuration and   
visualization
Operating systems Windows 10 (32/64 Bit) Professional / Enterprise, Windows Server 2012 R2   
64 Bit, Windows Server 2019
PC requirements Minimum: 1 GHz, 4 GB RAM, 5-18 GB free disk space   
 included
 optional (additional license required) as integrated tool / feature / library
 optional (additional license required) as standalone tool / feature - not integrated in Automation Builder
(1) additional runtime license per PLC required
(*) Technology Preview: Technology Previews are non-final versions of our product and should not be taken as a measure of the fit, finish, capability, and overall quality of the
product.
