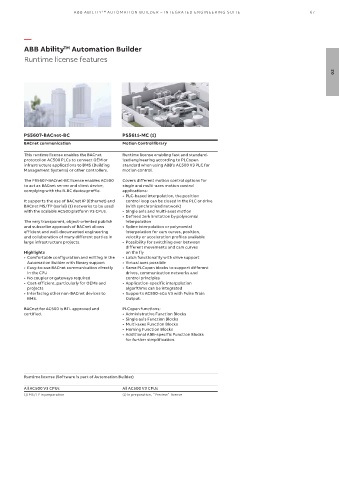

ABB ABILIT Y TM AUTOMATION BUILDER – INTEGR ATED ENGINEERING SUITE 67

—
ABB Ability Automation Builder
TM
Runtime license features

02

PS5607-BACnet-BC PS5611-MC (1)
BACnet communication Motion Control library
This runtime license enables the BACnet Runtime license enabling fast and standard-
protocol on AC500 PLCs to connect OEM or ized engineering according to PLCopen
infrastructure applications to BMS (Building standard when using ABB’s AC500 V3 PLC for
Management Systems) or other controllers. motion control.
The PS5607-BACnet-BC license enables AC500 Covers different motion control options for
to act as BACnet server and client device, single and multi-axes motion control
complying with the B-BC device profile. applications:
• PLC-based interpolation, the position
It supports the use of BACnet IP (Ethernet) and control loop can be closed in the PLC or drive
BACnet MS/TP (serial) (1) networks to be used (with synchronized network)
with the scalable AC500 platform V3 CPUs. • Single axis and multi-axes motion
• Defined Jerk limitation by polynomial
The very transparent, object-oriented publish interpolation
and subscribe approach of BACnet allows • Spline interpolation or polynomial
efficient and well-documented engineering interpolation for cam curves, position,
and collaboration of many different parties in velocity or acceleration profiles available
large infrastructure projects. • Possibility for switching over between
different movements and cam curves
Highlights on the fly
• Comfortable configuration and editing in the • Latch functionality with drive support
Automation Builder with library support • Virtual axes possible
• Easy-to-use BACnet communication directly • Same PLCopen blocks to support different
in the CPU drives, communication networks and
• No coupler or gateways required control principles
• Cost-efficient, particularly for OEMs and • Application-specific interpolation
projects algorithms can be integrated
• Interfacing other non-BACnet devices to • Supports AC500-eCo V3 with Pulse Train
BMS. Output.
BACnet for AC500 is BTL approved and PLCopen functions:
certified. • Administrative Function Blocks
• Single axis Function Blocks
• Multi-axes Function Blocks
• Homing Function Blocks
• Additional ABB-specific Function Blocks
for further simplification.

Runtime license (Software is part of Automation Builder)

All AC500 V3 CPUs All AC500 V3 CPUs
(1) MS/TP in preparation (1) In preparation, “Preview” license
