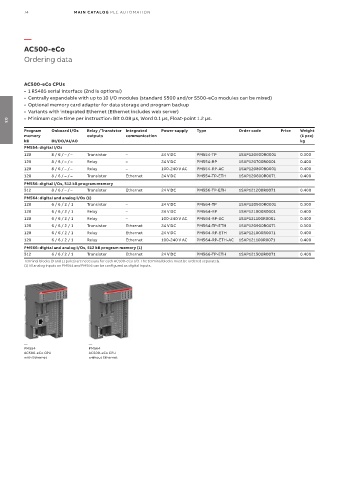

74 MAIN CATALOG PLC AUTOMATION

—
AC500-eCo
Ordering data

AC500-eCo CPUs
• 1 RS485 serial interface (2nd is optional)
• Centrally expandable with up to 10 I/O modules (standard S500 and/or S500-eCo modules can be mixed)
• Optional memory card adapter for data storage and program backup
• Variants with integrated Ethernet (Ethernet includes web server)
• Minimum cycle time per instruction: Bit 0.08 µs, Word 0.1 µs, Float-point 1.2 µs.
03
Program Onboard I/Os Relay /Transistor Integrated Power supply Type Order code Price Weight
memory outputs communication (1 pce)
kB DI/DO/AI/AO kg
PM554: digital I/Os
128 8 / 6 / – / – Transistor – 24 V DC PM554-TP 1SAP120600R0001 0.300
128 8 / 6 / – / – Relay – 24 V DC PM554-RP 1SAP120700R0001 0.400
128 8 / 6 / – / – Relay – 100-240 V AC PM554-RP-AC 1SAP120800R0001 0.400
128 8 / 6 / – / – Transistor Ethernet 24 V DC PM554-TP-ETH 1SAP120600R0071 0.400
PM556: digital I/Os, 512 kB program memory
512 8 / 6 / – / – Transistor Ethernet 24 V DC PM556-TP-ETH 1SAP121200R0071 0.400
PM564: digital and analog I/Os (1)
128 6 / 6 / 2 / 1 Transistor – 24 V DC PM564-TP 1SAP120900R0001 0.300
128 6 / 6 / 2 / 1 Relay – 24 V DC PM564-RP 1SAP121000R0001 0.400
128 6 / 6 / 2 / 1 Relay – 100-240 V AC PM564-RP-AC 1SAP121100R0001 0.400
128 6 / 6 / 2 / 1 Transistor Ethernet 24 V DC PM564-TP-ETH 1SAP120900R0071 0.300
128 6 / 6 / 2 / 1 Relay Ethernet 24 V DC PM564-RP-ETH 1SAP121000R0071 0.400
128 6 / 6 / 2 / 1 Relay Ethernet 100-240 V AC PM564-RP-ETH-AC 1SAP121100R0071 0.400
PM566: digital and analog I/Os, 512 kB program memory (1)
512 6 / 6 / 2 / 1 Transistor Ethernet 24 V DC PM566-TP-ETH 1SAP121500R0071 0.400
Terminal blocks (9 and 11 poles) are necessary for each AC500-eCo I/O. The terminal blocks must be ordered separately.
(1) All analog inputs on PM564 and PM566 can be configured as digital inputs.

— —
PM554 PM564
AC500-eCo CPU AC500-eCo CPU
with Ethernet without Ethernet
