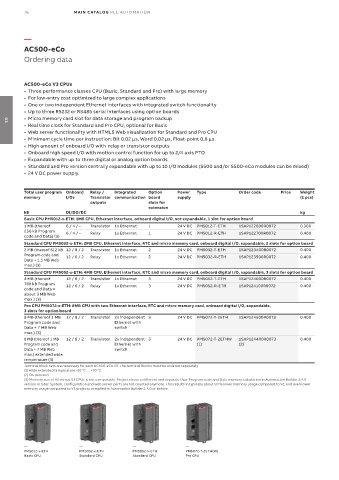

76 MAIN CATALOG PLC AUTOMATION

—
AC500-eCo
Ordering data

AC500-eCo V3 CPUs
• Three performance classes CPU (Basic, Standard and Pro) with large memory
• For low-entry cost optimized to large complex applications
• One or two independent Ethernet interfaces with integrated switch functionality
• Up to three RS232 or RS485 serial interfaces using option boards
• Micro memory card slot for data storage and program backup
• Real time clock for Standard and Pro CPU, optional for Basic
03
• Web server functionality with HTML5 Web visualization for Standard and Pro CPU
• Minimum cycle time per instruction: Bit 0.02 μs, Word 0.02 μs, Float-point 0,6 μs.
• High amount of onboard I/O with relay or transistor outputs
• Onboard high speed I/O with motion control function for up to 2/4 axis PTO
• Expandable with up to three digital or analog option boards
• Standard and Pro version centrally expandable with up to 10 I/O modules (S500 and/or S500-eCo modules can be mixed)
• 24 V DC power supply.

Total user program Onboard Relay / Integrated Option Power Type Order code Price Weight
memory I/Os Transistor communication board supply (1 pce)
outputs slots for
extension
kB DI/DO/DC kg
Basic CPU PM5012-x-ETH: 1MB CPU, Ethernet interface, onboard digital I/O, not expandable, 1 slot for option board
1 MB (thereof 6 / 4 / – Transistor 1x Ethernet 1 24 V DC PM5012-T-ETH 1SAP122600R0072 0.300
256 kB Program 6 / 4 / – Relay 1x Ethernet 1 24 V DC PM5012-R-ETH 1SAP122700R0072 0.400
code and Data) (3)
Standard CPU PM5032-x-ETH: 2MB CPU, Ethernet interface, RTC and micro memory card, onboard digital I/O, expandable, 2 slots for option board
2 MB (thereof 512 kB 12 / 8 / 2 Transistor 1x Ethernet 2 24 V DC PM5032-T-ETH 1SAP123400R0072 0.400
Program code and 12 / 6 / 2 Relay 1x Ethernet 2 24 V DC PM5032-R-ETH 1SAP123500R0072 0.400
Data + 1.5 MB Web
max.) (3)
Standard CPU PM5052-x-ETH: 4MB CPU, Ethernet interface, RTC and micro memory card, onboard digital I/O, expandable, 3 slots for option board
4 MB (thereof 12 / 8 / 2 Transistor 1x Ethernet 3 24 V DC PM5052-T-ETH 1SAP124000R0072 0.400
768 kB Program 12 / 6 / 2 Relay 1x Ethernet 3 24 V DC PM5052-R-ETH 1SAP124100R0072 0.400
code and Data +
about 3 MB Web
max.) (3)
Pro CPU PM5072-x-ETH: 8MB CPU with two Ethernet interface, RTC and micro memory card, onboard digital I/O, expandable,
3 slots for option board
8 MB (thereof 1 MB 12 / 8 / 2 Transistor 2x independent 3 24 V DC PM5072-T-2ETH 1SAP124500R0073 0.400
Program code and Ethernet with
Data + 7 MB Web switch
max.) (3)
8 MB (thereof 1 MB 12 / 8 / 2 Transistor 2x independent 3 24 V DC PM5072-T-2ETHW 1SAP124400R0073 0.400
Program code and Ethernet with (1) (2)
Data + 7 MB Web switch
max.) extended wide
temperature (3)
Terminal block sets are necessary for each AC500-eCo V3. The terminal blocks must be ordered separately.
(1) Wide extended temperature -20 °C … +70 °C.
(2) On demand.
(3) Memory size of V2 versus V3 CPUs is not comparable. Projects have a different and separate User Program code and Data memory calculation in Automation Builder 2.4.0
version or later: System, configuration and web server parts are not counted anymore. This results in typically about 50 % lower memory usage compared to V2, and even lower
memory usage compared to V3 projects compiled in Automation Builder 2.3.0 or before.

— — — —
PM5012-x-ETH PM5032-x-ETH PM5052-x-ETH PM5072-T-2ETH(W)
Basic CPU Standard CPU Standard CPU Pro CPU
