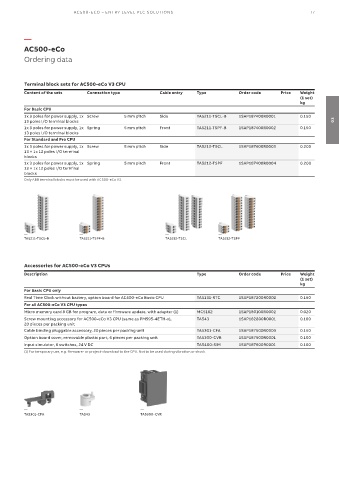

AC500 -ECO – ENTRY LEVEL PLC SOLUTIONS 77

—
AC500-eCo
Ordering data

Terminal block sets for AC500-eCo V3 CPU
Content of the sets Connection type Cable entry Type Order code Price Weight
(1 set)
kg
For Basic CPU
1x 3 poles for power supply, 1x Screw 5 mm pitch Side TA5211-TSCL-B 1SAP187400R0001 0.150
13 poles I/O terminal blocks 03
1x 3 poles for power supply, 1x Spring 5 mm pitch Front TA5211-TSPF-B 1SAP187400R0002 0.150
13 poles I/O terminal blocks
For Standard and Pro CPU
1x 3 poles for power supply, 1x Screw 5 mm pitch Side TA5212-TSCL 1SAP187400R0003 0.200
13 + 1x 12 poles I/O terminal
blocks
1x 3 poles for power supply, 1x Spring 5 mm pitch Front TA5212-TSPF 1SAP187400R0004 0.200
13 + 1x 12 poles I/O terminal
blocks
Only ABB terminal blocks must be used with AC500-eCo V3.

— — — —
TA5211-TSCL-B TA5211-TSPF-B TA5212-TSCL TA5212-TSPF

Accessories for AC500-eCo V3 CPUs
Description Type Order code Price Weight
(1 set)
kg
For Basic CPU only
Real Time Clock without battery, option board for AC500-eCo Basic CPU TA5131-RTC 1SAP187200R0002 0.150
For all AC500-eCo V3 CPU types
Micro memory card 8 GB for program, data or firmware update, with adapter (1) MC5102 1SAP180100R0002 0.020
Screw mounting accessory for AC500-eCo V3 CPU (same as PM595-4ETH-x), TA543 1SAP182800R0001 0.100
20 pieces per packing unit
Cable binding pluggable accessory, 20 pieces per packing unit TA5301-CFA 1SAP187500R0003 0.150
Option board cover, removable plastic part, 6 pieces per packing unit TA5300-CVR 1SAP187500R0001 0.100
Input simulator, 6 switches, 24 V DC TA5400-SIM 1SAP187600R0001 0.100
(1) For temporary use, e.g. firmware- or project-download to the CPU. Not to be used during vibration or shock.

— — —
TA5301-CFA TA543 TA5300-CVR
