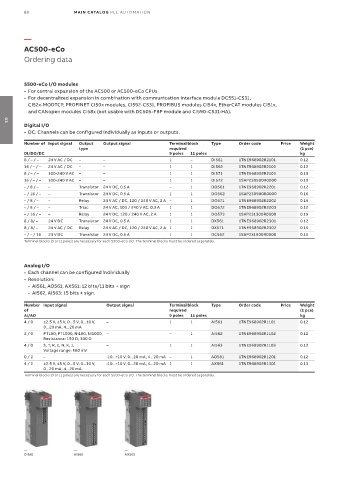

80 MAIN CATALOG PLC AUTOMATION

—
AC500-eCo
Ordering data

S500-eCo I/O modules
• For central expansion of the AC500 or AC500-eCo CPUs
• For decentralized expansion in combination with communication interface module DC551-CS31,
CI52x-MODTCP, PROFINET CI50x modules, CI592-CS31, PROFIBUS modules CI54x, EtherCAT modules CI51x,
and CANopen modules CI58x (not usable with DC505-FBP module and CI590-CS31-HA).

Digital I/O
03
• DC: Channels can be configured individually as inputs or outputs.
Number of Input signal Output Output signal Terminal block Type Order code Price Weight
type required (1 pce)
DI/DO/DC 9 poles 11 poles kg
8 / – / – 24 V AC / DC – – 1 – DI561 1TNE968902R2101 0.12
16 / – / – 24 V AC / DC – – 1 1 DI562 1TNE968902R2102 0.12
8 / – / – 100-240 V AC – – 1 1 DI571 1TNE968902R2103 0.15
16 / – / – 100-240 V AC – – 1 1 DI572 1SAP230500R0000 0.19
– / 8 / – – Transistor 24 V DC, 0.5 A – 1 DO561 1TNE968902R2201 0.12
– / 16 / – – Transistor 24 V DC, 0.5 A 1 1 DO562 1SAP230900R0000 0.16
– / 8 / – – Relay 24 V AC / DC, 120 / 240 V AC, 2 A – 1 DO571 1TNE968902R2202 0.15
– / 8 / – – Triac 24 V AC, 100 / 240 V AC, 0.3 A 1 1 DO572 1TNE968902R2203 0.12
– / 16 / – – Relay 24 V DC, 120 / 240 V AC, 2 A 1 1 DO573 1SAP231300R0000 0.19
8 / 8/ – 24 V DC Transistor 24 V DC, 0.5 A 1 1 DX561 1TNE968902R2301 0.12
8 / 8/ – 24 V AC / DC Relay 24 V AC / DC, 120 / 240 V AC, 2 A 1 1 DX571 1TNE968902R2302 0.15
– / – / 16 24 V DC Transistor 24 V DC, 0.5 A 1 1 DC562 1SAP231900R0000 0.15
Terminal blocks (9 or 11 poles) are necessary for each S500-eCo I/O. The terminal blocks must be ordered separately.

Analog I/O
• Each channel can be configured individually
• Resolution:
- AI561, AO561, AX561: 12 bits/11 bits + sign
- AI562, AI563: 15 bits + sign.
Number Input signal Output signal Terminal block Type Order code Price Weight
of required (1 pce)
AI/AO 9 poles 11 poles kg
4 / 0 ±2.5 V, ±5 V, 0...5 V, 0...10 V, – 1 1 AI561 1TNE968902R1101 0.12
0...20 mA, 4...20 mA
2 / 0 PT100, PT1000, Ni100, Ni1000, – – 1 AI562 1TNE968902R1102 0.12
Resistance: 150 Ω, 300 Ω
4 / 0 S, T, R, E, N, K, J, – 1 1 AI563 1TNE968902R1103 0.12
Voltage range: ±80 mV
0 / 2 – -10...+10 V, 0...20 mA, 4...20 mA – 1 AO561 1TNE968902R1201 0.12
4 / 2 ±2.5 V, ±5 V, 0...5 V, 0...10 V, -10...+10 V, 0...20 mA, 4...20 mA 1 1 AX561 1TNE968902R1301 0.13
0...20 mA, 4...20 mA
Terminal blocks (9 or 11 poles) are necessary for each S500-eCo I/O. The terminal blocks must be ordered separately.

— — —
DI561 AI562 AX561
