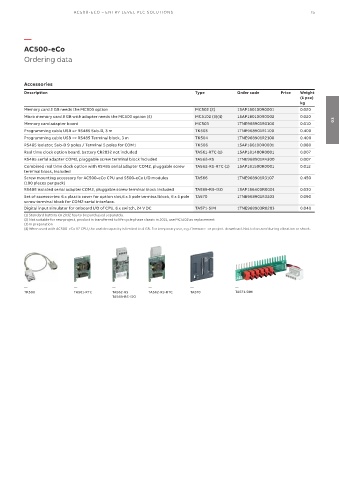

AC500 -ECO – ENTRY LEVEL PLC SOLUTIONS 75

—
AC500-eCo
Ordering data

Accessories
Description Type Order code Price Weight
(1 pce)
kg
Memory card 2 GB needs the MC503 option MC502 (2) 1SAP180100R0001 0.020
Micro memory card 8 GB with adapter needs the MC503 option (4) MC5102 (3)(4) 1SAP180100R0002 0.020
03
Memory card adapter board MC503 1TNE968901R0100 0.010
Programming cable USB => RS485 Sub-D, 3 m TK503 1TNE968901R1100 0.400
Programming cable USB => RS485 Terminal block, 3 m TK504 1TNE968901R2100 0.400
RS485 isolator, Sub-D 9 poles / Terminal 5 poles for COM1 TK506 1SAP186100R0001 0.080
Real time clock option board, battery CR2032 not included TA561-RTC (1) 1SAP181400R0001 0.007
RS485 serial adapter COM2, pluggable screw terminal block included TA562-RS 1TNE968901R4300 0.007
Combined real time clock option with RS485 serial adapter COM2, pluggable screw TA562-RS-RTC (1) 1SAP181500R0001 0.012
terminal block, included
Screw mounting accessory for AC500-eCo CPU and S500-eCo I/O modules TA566 1TNE968901R3107 0.450
(100 pieces per pack)
RS485 isolated serial adapter COM2, pluggable screw terminal block included TA569-RS-ISO 1SAP186400R0001 0.030
Set of accessories: 6 x plastic cover for option slot,6 x 5 pole terminal block, 6 x 5 pole TA570 1TNE968901R3203 0.090
screw terminal block for COM2 serial interface.
Digital input simulator for onboard I/O of CPU, 6 x switch, 24 V DC TA571-SIM 1TNE968903R0203 0.040
(1) Standard battery CR 2032 has to be purchased separately.
(2) Not suitable for new project, product is transferred to life cycle phase classic in 2021, use MC5102 as replacement
(3) In preparation
(4) When used with AC500-eCo V2 CPU, the usable capacity is limited to 4 GB. For temporary use, e.g. firmware- or project-download. Not to be used during vibration or shock.

— — — — — —
TK506 TA561-RTC TA562-RS TA562-RS-RTC TA570 TA571-SIM
TA569-RS-ISO
