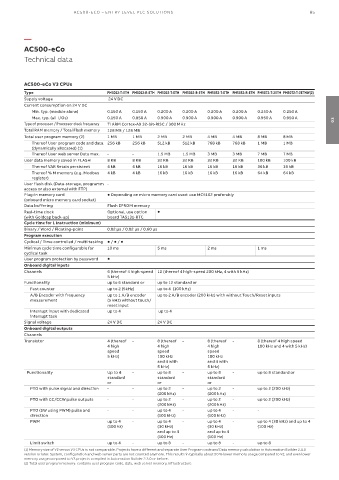

AC500 -ECO – ENTRY LEVEL PLC SOLUTIONS 85

—
AC500-eCo
Technical data

AC500-eCo V3 CPUs
Type PM5012-T-ETH PM5012-R-ETH PM5032-T-ETH PM5032-R-ETH PM5052-T-ETH PM5052-R-ETH PM5072-T-2ETH PM5072-T-2ETHW(2)
Supply voltage 24 V DC
Current consumption on 24 V DC
Min. typ. (module alone) 0.150 A 0.150 A 0.200 A 0.200 A 0.200 A 0.200 A 0.250 A 0.250 A
Max. typ. (all I/Os) 0.150 A 0.850 A 0.900 A 0.900 A 0.900 A 0.900 A 0.950 A 0.950 A 03
Type of processor / Processor clock frequency TI ARM Cortex-A9 32-bit-RISC / 300 MHz
Total RAM memory / Total Flash memory 128 MB / 128 MB
Total user program memory (2) 1 MB 1 MB 2 MB 2 MB 4 MB 4 MB 8 MB 8 MB
Thereof User program code and data 256 kB 256 kB 512 kB 512 kB 768 kB 768 kB 1 MB 1 MB
(dynamically allocated) (1)
Thereof User web server Data max. - - 1.5 MB 1.5 MB 3 MB 3 MB 7 MB 7 MB
User data memory saved in FLASH 8 KB 8 KB 32 KB 32 KB 32 KB 32 KB 100 kB 100 kB
Thereof VAR Retain persistent 4 kB 4 kB 16 kB 16 kB 16 kB 16 kB 36 kB 36 kB
Thereof % M memory (e.g. Modbus 4 kB 4 kB 16 kB 16 kB 16 kB 16 kB 64 kB 64 kB
register)
User flash disk (Data-storage, programm -
access or also external with FTP)
Plug-in memory card  Depending on micro memory card used: use MC5102 preferably
(onboard micro memory card socket)
Data buffering Flash EPROM memory
Real-time clock Optional, use option 
(with Goldcap back-up) board TA5131-RTC
Cycle time for 1 instruction (minimum)
Binary / Word / Floating-point 0.02 µs / 0.02 µs / 0.60 µs
Program execution
Cyclical / Time controlled / multi tasking  /  / 
Minimun cycle time configurable for 10 ms 5 ms 2 ms 1 ms
cyclical task
User program protection by password 
Onboard digital inputs
Channels 6 (thereof 4 high-speed 12 (thereof 4 high-speed 200 kHz, 4 with 5 kHz)
5 kHz)
Functionality up to 6 standard or up to 12 standard or
Fast counter up to 2 (5kHz) up to 4 (100 kHz)
A/B Encoder with frequency up to 1 A/B encoder up to 2 A/B encoder (200 kHz) with without Touch/Reset inputs
measurement (5 kHz) without touch/
reset input
Interrupt input with dedicated up to 4 up to 4
interrupt task
Signal voltage 24 V DC 24 V DC
Onboard digital outputs
Channels
Transistor 4 (thereof - 8 (thereof - 8 (thereof - 8 (thereof 4 high speed
4 high 4 high 4 high 100 kHz and 4 with 5 kHz)
speed speed speed
5 kHz) 100 kHz 100 kHz
and 4 with and 4 with
5 kHz) 5 kHz)
Functionality Up to 4 - up to 8 - up to 8 - up to 8 standard or
standard standard standard
or or or
PTO with pulse signal and direction - - up to 2 - up to 2 - up to 2 (200 kHz)
(200 kHz) (200 kHz)
PTO with CC/CCW pulse outputs - - up to 2 - up to 2 - up to 2 (200 kHz)
(200 kHz) (200 kHz)
PTO (SW using PWM) pulse and - - up to 4 - up to 4 - -
direction (100 kHz) (100 kHz)
PWM up to 4 - up to 4 - up to 4 - up to 4 (30 kHz) and up to 4
(100 hz) (30 kHz) (30 kHz) (100 Hz)
and up to 4 and up to 4
(100 Hz) (100 Hz)
Limit switch up to 4 - up to 8 - up to 8 - up to 8
(1) Memory size of V2 versus V3 CPUs is not comparable. Projects have a different and separate User Program code and Data memory calculation in Automation Builder 2.4.0
version or later: System, configuration and web server parts are not counted anymore. This results in typically about 50 % lower memory usage compared to V2, and even lower
memory usage compared to V3 projects compiled in Automation Builder 2.3.0 or before.
(2) Total user program memory: contains user program code, data, web server memory, infrastructure
