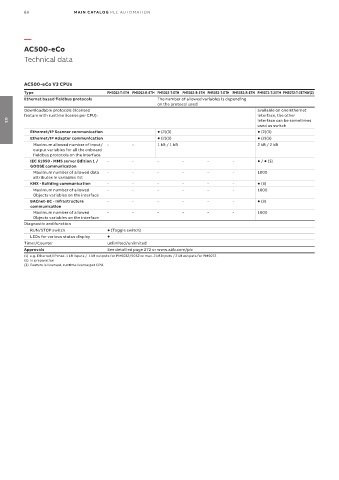

88 MAIN CATALOG PLC AUTOMATION

—
AC500-eCo
Technical data

AC500-eCo V3 CPUs
Type PM5012-T-ETH PM5012-R-ETH PM5032-T-ETH PM5032-R-ETH PM5052-T-ETH PM5052-R-ETH PM5072-T-2ETH PM5072-T-2ETHW(2)
Ethernet based fieldbus protocols The number of allowed variables is depending
on the protocol used
Downloadable protocols (licensed available on one Ethernet
feature with runtime license per CPU): interface, the other
interface can be sometimes
03
used as switch
Ethernet/IP Scanner communication  (2)(3)  (2)(3)
Ethernet/IP Adapter communication  (2)(3)  (2)(3)
Maximum allowed number of input/ - - 1 kB / 1 kB 2 kB / 2 kB
output variables for all the onboard
fieldbus protocols on the interface
IEC 61850 - MMS server Edition 1 / - - - - - -  /  (3)
GOOSE communication
Maximum number of allowed data - - - - - - 1000
attributes in variables list
KNX - Building communication - - - - - -  (3)
Maximum number of allowed - - - - - - 1000
Objects variables on the interface
BACnet-BC - Infrastructure - - - - - -  (3)
communication
Maximum number of allowed - - - - - - 1000
Objects variables on the interface
Diagnostic and function
RUN/STOP switch  (Toggle switch)
LEDs for various status display 
Timer/Counter unlimited/unlimited
Approvals See detailled page 272 or www.abb.com/plc
(1) e.g. Ethernet/IP max. 1 kB inputs / 1 kB outputs for PM5032/5052 or max. 2 kB inputs / 2 kB outputs for PM5072
(2) In preparation
(3) Feature is licensed, runtime license per CPU.
