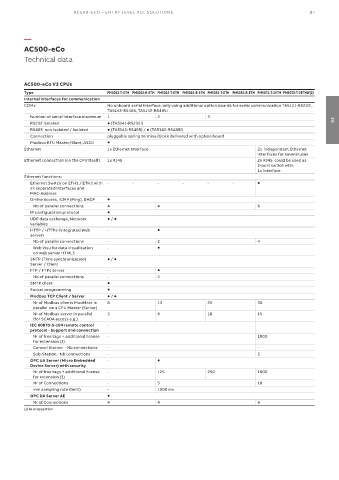

AC500 -ECO – ENTRY LEVEL PLC SOLUTIONS 87

—
AC500-eCo
Technical data

AC500-eCo V3 CPUs
Type PM5012-T-ETH PM5012-R-ETH PM5032-T-ETH PM5032-R-ETH PM5052-T-ETH PM5052-R-ETH PM5072-T-2ETH PM5072-T-2ETHW(2)
Internal interfaces for communication
COMx No onboard serial interface, only using additional option boards for serial communication TA5141-RS232I,
TA5142-RS485, TA5142-RS485I
Number of serial interface maximum 1 2 3
RS232 isolated  (TA5141-RS232I) 03
RS485 non isolated / Isolated  (TA5142-RS485) /  (TA5142-RS485I)
Connection pluggable spring terminal block delivered with option board
Modbus RTU Master/Slave, ASCII 
Ethernet 1x Ethernet Interface 2x independent Ethernet
interfaces for several uses
Ethernet connection (on the CPU itself) 1x RJ45 2x RJ45 could be used as
2-port switch with
1x interface
Ethernet functions:
Ethernet Switch on ETH1 / ETH2 with - - - - - - 
2x separated interfaces and
MAC-Address
Online Access, ICMP (Ping), DHCP 
Nb of parallel connections 4 4 6
IP configuration protocol 
UDP data exchange, Network  / 
variables
HTTP / HTTPs (integrated Web - 
server)
Nb of parallel connections - 2 4
Web Visu for data visualisation - 
on web server HTML5
SNTP (Time synchronization)  / 
Server / Client
FTP / FTPs server - 
Nb of parallel connections - 2
SMTP client 
Socket programming 
Modbus TCP Client / Server  / 
Nr of Modbus clients ModMast in 8 13 20 30
parallel on a CPU Master (Server)
Nr of Modbus server in parallel 3 8 10 15
(for SCADA access e.g.)
IEC 60870-5-104 remote control -
protocol - Support 2nd connection
Nr of free tags + additional license - 1000
for extension (1)
Control Station - Nb connections - -
Sub-Station - Nb connections - 5
OPC UA Server (Micro Embedded - 
Device Server) with security
Nr of free tags + additional license - 125 250 1000
for extension (1)
Nr of Connections - 5 10
min sampling rate (limit) - 1000 ms
OPC DA Server AE 
Nr of Connections 4 4 6
(1) In preparation
