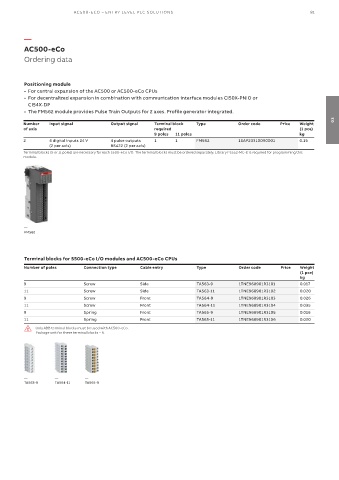

AC500 -ECO – ENTRY LEVEL PLC SOLUTIONS 81

—
AC500-eCo
Ordering data

Positioning module
• For central expansion of the AC500 or AC500-eCo CPUs
• For decentralized expansion in combination with communication interface modules CI50X-PNIO or
CI54X-DP
• The FM562 module provides Pulse Train Outputs for 2 axes. Profile generator integrated.
03
Number Input signal Output signal Terminal block Type Order code Price Weight
of axis required (1 pce)
9 poles 11 poles kg
2 4 digital inputs 24 V 4 pulse outputs 1 1 FM562 1SAP233100R0001 0.15
(2 per axis) RS422 (2 per axis)
Terminal blocks (9 or 11 poles) are necessary for each S500-eCo I/O. The terminal blocks must be ordered separately. Library PS552-MC-E is required for programming this
module.

—
FM562

Terminal blocks for S500-eCo I/O modules and AC500-eCo CPUs
Number of poles Connection type Cable entry Type Order code Price Weight
(1 pce)
kg
9 Screw Side TA563-9 1TNE968901R3101 0.017
11 Screw Side TA563-11 1TNE968901R3102 0.020
9 Screw Front TA564-9 1TNE968901R3103 0.026
11 Screw Front TA564-11 1TNE968901R3104 0.035
9 Spring Front TA565-9 1TNE968901R3105 0.016
11 Spring Front TA565-11 1TNE968901R3106 0.020
Only ABB terminal blocks must be used with AC500-eCo.
Package unit for these terminal blocks = 6.

— — —
TA563-9 TA564-11 TA565-9
