P. 131

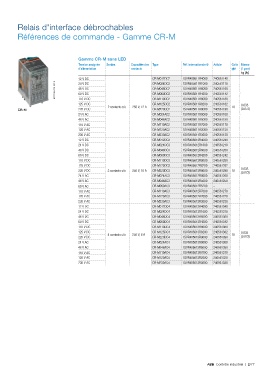

Relais d'interface débrochables
Références de commande - Gamme CR-M
Gamme CR-M sans LED
Tension assignée Sorties Capacités des Type Réf. internationale @ Article Colis Masse
d'alimentation contacts qté (1 pce)
kg (lb)
12 V DC CR-M012DC2 1SVR405611R4000 240561140
1SVR405611R1000
CR-M024DC2
240561110
24 V DC
2CDC 291 002 F0015 48 V DC CR-M048DC2 1SVR405611R6000 240561160
240561142
1SVR405611R4200
CR-M060DC2
60 V DC
110 V DC
CR-M125DC2
125 V DC 2 contacts c/o 250 V, 12 A CR-M110DC2 1SVR405611R8000 240561180 10 0.033
240561182
1SVR405611R8200
CR-M 220 V DC CR-M220DC2 1SVR405611R9000 240561190 (0.073)
24 V AC CR-M024AC2 1SVR405611R0000 240561100
48 V AC CR-M048AC2 1SVR405611R5000 240561150
110 V AC CR-M110AC2 1SVR405611R7000 240561170
120 V AC CR-M120AC2 1SVR405611R2000 240561120
230 V AC CR-M230AC2 1SVR405611R3000 240561130
12 V DC CR-M012DC3 1SVR405612R4000 240561240
24 V DC CR-M024DC3 1SVR405612R1000 240561210
48 V DC CR-M048DC3 1SVR405612R6000 240561260
60 V DC CR-M060DC3 1SVR405612R4200 240561242
110 V DC CR-M110DC3 1SVR405612R8000 240561280
125 V DC CR-M125DC3 1SVR405612R8200 240561282
220 V DC 3 contacts c/o 250 V, 10 A CR-M220DC3 1SVR405612R9000 240561290 10 0.033
(0.073)
24 V AC CR-M024AC3 1SVR405612R0000 240561200
48 V AC CR-M048AC3 1SVR405612R5000 240561250
60 V AC CR-M060AC3 1SVR405612R5200 –
110 V AC CR-M110AC3 1SVR405612R7000 240561270
120 V AC CR-M120AC3 1SVR405612R2000 240561220
230 V AC CR-M230AC3 1SVR405612R3000 240561230
12 V DC CR-M012DC4 1SVR405613R4000 240561340
24 V DC CR-M024DC4 1SVR405613R1000 240561310
48 V DC CR-M048DC4 1SVR405613R6000 240561360
60 V DC CR-M060DC4 1SVR405613R4200 240561342
110 V DC CR-M110DC4 1SVR405613R8000 240561380
125 V DC 4 contacts c/o 250 V, 6 A CR-M125DC4 1SVR405613R8200 240561382 10 0.033
220 V DC CR-M220DC4 1SVR405613R9000 240561390 (0.073)
24 V AC CR-M024AC4 1SVR405613R0000 240561300
48 V AC CR-M048AC4 1SVR405613R5000 240561350
110 V AC CR-M110AC4 1SVR405613R7000 240561370
120 V AC CR-M120AC4 1SVR405613R2000 240561320
230 V AC CR-M230AC4 1SVR405613R3000 240561330
ABB Contrôle industriel | 2/77
