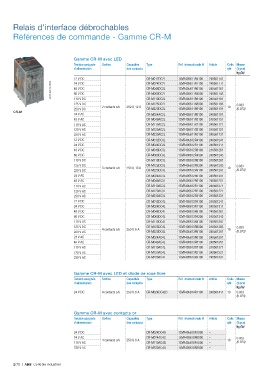

Relais d'interface débrochables

Références de commande - Gamme CR-M

Gamme CR-M avec LED
Tension assignée Sorties Capacités Type Réf. internationale @ Article Colis Masse
d'alimentation des contacts qté (1 pce)
kg (lb)
12 V DC CR-M012DC2L 1SVR405611R4100 240561141
2CDC 291 002 F0015 48 V DC CR-M048DC2L 1SVR405611R6100 240561161
CR-M024DC2L
1SVR405611R1100
240561111
24 V DC
240561143
1SVR405611R4300
CR-M060DC2L
60 V DC
110 V DC
125 V DC CR-M110DC2L 1SVR405611R8100 240561181 0.033
CR-M125DC2L
240561183
1SVR405611R8300
220 V DC 2 contacts c/o 250 V, 12 A CR-M220DC2L 1SVR405611R9100 240561191 10 (0.073)
CR-M
24 V AC CR-M024AC2L 1SVR405611R0100 240561101
48 V AC CR-M048AC2L 1SVR405611R5100 240561151
110 V AC CR-M110AC2L 1SVR405611R7100 240561171
120 V AC CR-M120AC2L 1SVR405611R2100 240561121
230 V AC CR-M230AC2L 1SVR405611R3100 240561131
12 V DC CR-M012DC3L 1SVR405612R4100 240561241
24 V DC CR-M024DC3L 1SVR405612R1100 240561211
48 V DC CR-M048DC3L 1SVR405612R6100 240561261
60 V DC CR-M060DC3L 1SVR405612R4300 240561243
110 V DC CR-M110DC3L 1SVR405612R8100 240561281
125 V DC 3 contacts c/o 250 V, 10 A CR-M125DC3L 1SVR405612R8300 240561283 10 0.033
220 V DC CR-M220DC3L 1SVR405612R9100 240561291 (0.073)
24 V AC CR-M024AC3L 1SVR405612R0100 240561201
48 V AC CR-M048AC3L 1SVR405612R5100 240561251
110 V AC CR-M110AC3L 1SVR405612R7100 240561271
120 V AC CR-M120AC3L 1SVR405612R2100 240561221
230 V AC CR-M230AC3L 1SVR405612R3100 240561231
12 V DC CR-M012DC4L 1SVR405613R4100 240561341
24 V DC CR-M024DC4L 1SVR405613R1100 240561311
48 V DC CR-M048DC4L 1SVR405613R6100 240561361
60 V DC CR-M060DC4L 1SVR405613R4300 240561343
110 V DC CR-M110DC4L 1SVR405613R8100 240561381
125 V DC 4 contacts c/o 250 V, 6 A CR-M125DC4L 1SVR405613R8300 240561383 10 0.033
220 V DC CR-M220DC4L 1SVR405613R9100 240561391 (0.073)
24 V AC CR-M024AC4L 1SVR405613R0100 240561301
48 V AC CR-M048AC4L 1SVR405613R5100 240561351
110 V AC CR-M110AC4L 1SVR405613R7100 240561371
120 V AC CR-M120AC4L 1SVR405613R2100 240561321
230 V AC CR-M230AC4L 1SVR405613R3100 240561331

Gamme CR-M avec LED et diode de roue libre
Tension assignée Sorties Capacités Type Réf. internationale @ Article Colis Masse
d'alimentation des contacts qté (1 pce)
kg (lb)
24 V DC 4 contacts c/o 250 V, 6 A CR-M024DC4LD 1SVR405614R1100 240561411 10 0.033
(0.073)

Gamme CR-M avec contacts or
Tension assignée Sorties Capacités Type Réf. internationale @ Article Colis Masse
d'alimentation des contacts qté (1 pce)
kg (lb)
24 V DC CR-M024DC4G 1SVR405618R1000 –
24 V AC CR-M024AC4G 1SVR405618R0000 – 0.033
110 V AC 4 contacts c/o 250 V, 6 A CR-M110AC4G 1SVR405618R7000 – 10 (0.073)
230 V AC CR-M230AC4G 1SVR405618R3000 –

2/78 | ABB Contrôle industriel
