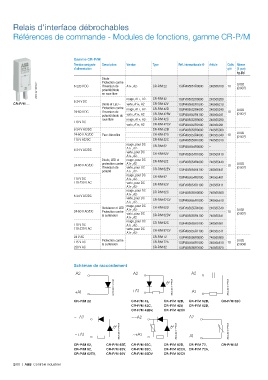

Relais d'interface débrochables

Références de commande - Modules de fonctions, gamme CR-P/M

Gamme CR-P/M
Tension assignée Description Version Type Réf. internationale @ Article Colis Masse
d'alimentation qté (1 pce)
kg (lb)
Diode -
2CDC 291 005 S0011 6-220 V DC l'inversion de A1+, A2- CR-P/M 22 1SVR405651R0000 240565100 10 0.003
Protection contre
(0.007)
polarité/diode
en roue libre
6-24 V DC rouge, A1+, A2- CR-P/M 42 1SVR405652R0000 240565200
CR-P/M ... Diode et LED – verte, A1+, A2- CR-P/M 42V 1SVR405652R1000 240565210
Protection contre rouge, A1+, A2- CR-P/M 42B 1SVR405652R4000 240565240
24-60 V DC l'inversion de 10 0.003
(0.007)
polarité/diode de verte, A1+, A2- CR-P/M 42BV 1SVR405652R4100 240565241
roue libre rouge, A1+, A2- CR-P/M 42C 1SVR405652R9000 240565290
110 V DC
verte, A1+, A2- CR-P/M 42CV 1SVR405652R9100 240565291
6-24 V AC/DC CR-P/M 52B 1SVR405653R0000 240565300
24-60 V AC/DC Pare-étincelles CR-P/M 52D 1SVR405653R4000 240565340 10 0.003
(0.007)
110 V AC/DC CR-P/M 52C 1SVR405653R1000 240565310
rouge, pour DC CR-P/M 62 1SVR405654R0000 –
6-24 V AC/DC A1+, A2-
verte, pour DC CR-P/M 62V
A1+, A2- 1SVR405654R1000 240565410
Diode, LED et rouge, pour DC CR-P/M 62E 1SVR405654R4000 240565440
24-60 V AC/DC protection contre A1+, A2- 10 0.003
l'inversion de verte, pour DC CR-P/M 62EV (0.007)
polarité A1+, A2- 1SVR405654R4100 240565441
rouge, pour DC
110 V DC A1+, A2- CR-P/M 92 1SVR405654R0100 240565401
110-230 V AC verte, pour DC CR-P/M 92V
A1+, A2- 1SVR405654R1100 240565411
rouge, pour DC CR-P/M 62C 1SVR405655R0000 240565500
6-24 V AC/DC A1+, A2-
verte, pour DC CR-P/M 62CV
A1+, A2- 1SVR405655R1000 240565510
rouge, pour DC
Varistance et LED CR-P/M 62D 1SVR405655R4000 240565540
24-60 V AC/DC Protection contre A1+, A2- 10 0.003
la surtension verte, pour DC CR-P/M 62DV 1SVR405655R4100 240565541 (0.007)
A1+, A2-
rouge, pour DC
110 V DC A1+, A2- CR-P/M 92C 1SVR405655R0100 240565501
110-230 V AC verte, pour DC CR-P/M 92CV
A1+, A2- 1SVR405655R1100 240565511
24 V AC CR-P/M 72 1SVR405656R0000 240565600
115 V AC Protection contre CR-P/M 72A 1SVR405656R1000 240565610 10 0.002
(0.004)
la surtension
230 V AC CR-P/M 82 1SVR405656R2000 240565620

Schémas de raccordement
-A2 -A2 A2
2CDC 292 013 F0005 2CDC 292 014 F0005 2CDC 292 015 F0005

+A1 +A1 A1

CR-P/M 22 CR-P/M 42, CR-P/M 42B, CR-P/M 52B, CR-P/M 52C
CR-P/M 42C, CR-P/M 42V, CR-P/M 52D,
CR-P/M 42BV, CR-P/M 42CV
~−A2 ~−A2 A2

2CDC 292 016 F0005 2CDC 292 017 F0005 2CDC 292 018 F0005
~+A1 ~+A1 A1

CR-P/M 62, CR-P/M 62E, CR-P/M 62C, CR-P/M 62D, CR-P/M 72, CR-P/M 82
CR-P/M 92, CR-P/M 62V, CR-P/M 92C, CR-P/M 62CV, CR-P/M 72A,
CR-P/M 62EV, CR-P/M 92V CR-P/M 62DV CR-P/M 92CV

2/80 | ABB Contrôle industriel
